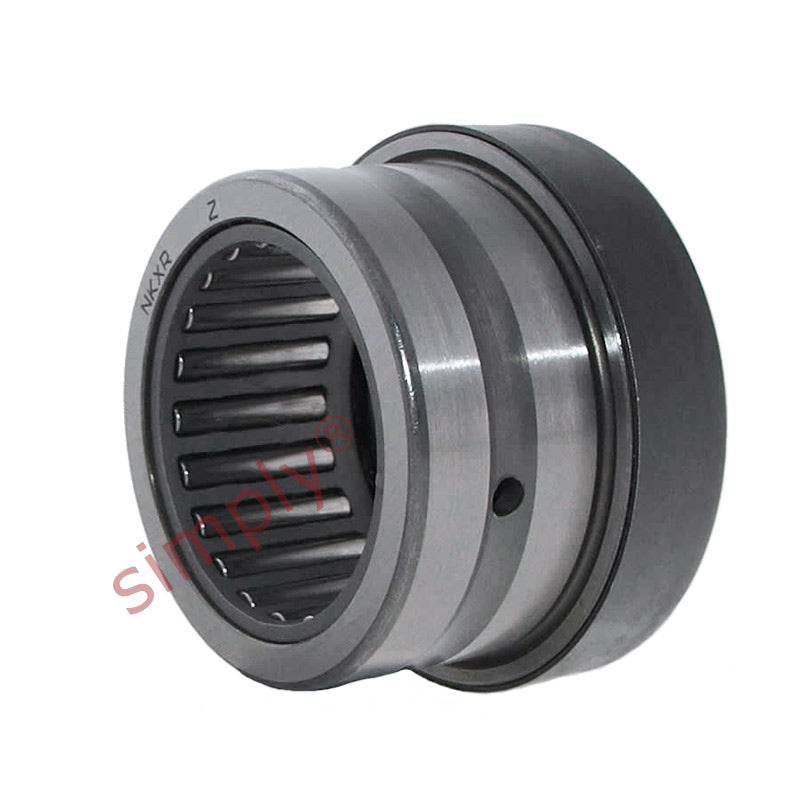

Major Brand NKXR20Z Needle Roller Thrust Bearing with Cover 20x30x30mm
Major Brand NKXR20Z Needle Roller Thrust Bearing with Cover 20x30x30mm
Regular price
CHF 78.00
ex VAT
Regular price
Sale price
CHF 78.00
ex VAT
In stock
Price Break
10+
CHF 62.10
19+
CHF 58.61
29+
CHF 57.92
39+
CHF 57.22
49+
CHF 56.52
74+
CHF 55.82
99+
CHF 52.33
199+
CHF 51.64
249+
CHF 50.94
499+
CHF 50.24
999+
CHF 48.84
Description
Description
|
Needle Roller / Ball Roller Thrust Combination: These bearings deliver exceptional performance, durability, and precision for demanding industrial applications. Designed to handle both radial and axial loads simultaneously, these high-quality bearings ensure smooth operation, reduced friction, and long service life even under heavy-duty conditions. Ideal for use in machinery, automotive systems, and various equipment requiring accurate alignment and load distribution. Benefits: High thrust loading, easily mounted, high quality materials |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 30mm
- Width:
- 30mm
- Seals / Shields:
- Metal Shielded
Technical
Technical
| Fw | 20mm |
|---|---|
| D | 30mm |
| C | 30mm |
| Dynamic load | 16800 N |
| Static load | 26000 N |
| Axial dynamic load | 18600 N |
| Axial static load | 48000 N |
| Fatigue load limit radial Pu | 3050 N |
| Fatigue load limit axial Pu | 4650 N |
| Min load factor A | 0.18 |
| Speed in grease | 2800 rpm |
| Speed in oil | 3800 rpm |
| C1 | 10mm |
| C2 | 10.5mm |
| d | 20mm |
| D2 | 36.2mm |
| r1r2 min | 0.3mm |
| da | 30.7mm |
| ra max | 0.3mm |
| rb max | 0.3mm |
| di | 17mm |
| F | 20mm |
| B1 | 20mm |
| Inner ring | IR17x20x20 |
| Weight | 84 g |
