SKU: NKXR15-EU

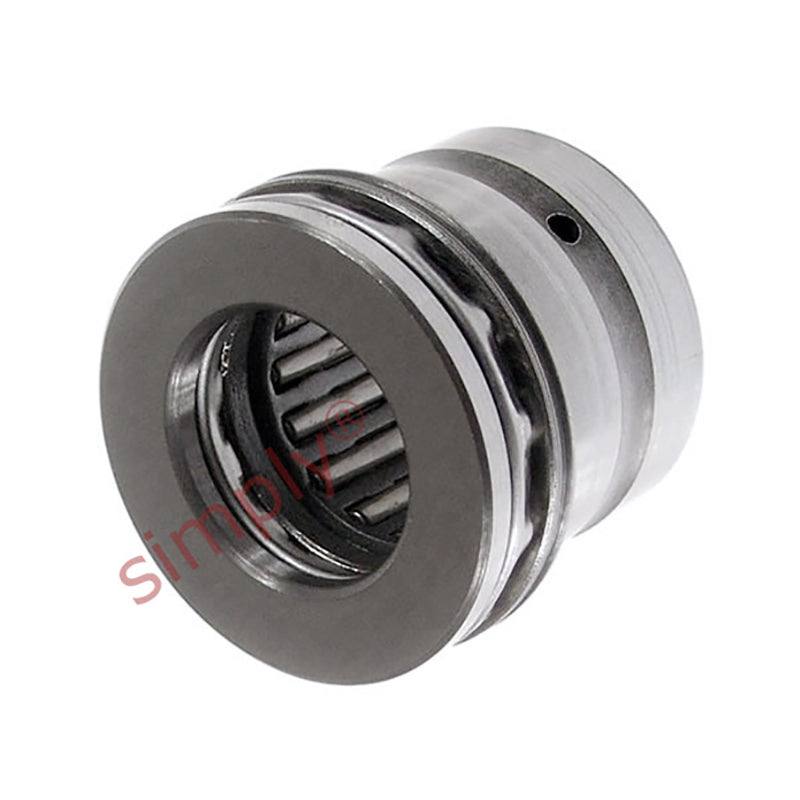

NKXR15 Budget Needle Roller Thrust Bearing without Cover 15x24x23mm
NKXR15 Budget Needle Roller Thrust Bearing without Cover 15x24x23mm
Regular price
CHF 34.00
ex VAT
Regular price
Sale price
CHF 34.00
ex VAT
In stock
Price Break
10+
CHF 26.75
19+
CHF 25.25
29+
CHF 24.95
39+
CHF 24.65
49+
CHF 24.35
74+
CHF 24.05
99+
CHF 22.54
199+
CHF 22.24
249+
CHF 21.94
499+
CHF 21.64
999+
CHF 21.04
Description
Description
Budget Needle Roller / Ball Roller Thrust Combination: Of a separable design, the outer ring with integral housing washer and integral needle roller cage assembly, the ball roller and the shaft washer can all be mounted individually. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 24mm
- Width:
- 23mm
Technical
Technical
| Fw | 15mm |
|---|---|
| D | 24mm |
| C | 23mm |
| Dynamic load | 11200 N |
| Static load | 14000 N |
| Axial dynamic load | 11200 N |
| Axial static load | 27000 N |
| Fatigue load limit radial Pu | 1660 N |
| Fatigue load limit axial Pu | 2450 N |
| Min load factor A | 0.058 |
| Speed in grease | 3200 rpm |
| Speed in oil | 4300 rpm |
| C1 | 9mm |
| C2 | 6.5mm |
| d | 15mm |
| D1 | 28mm |
| r1r2 min | 0.3mm |
| da | 23.7mm |
| ra max | 0.3mm |
| rb max | 0.3mm |
| di | 12mm |
| F | 15mm |
| B1 | 16mm |
| Inner ring | IR12x15x16 |
| Weight | 42 g |
