SKU: NKXR15Z-EU

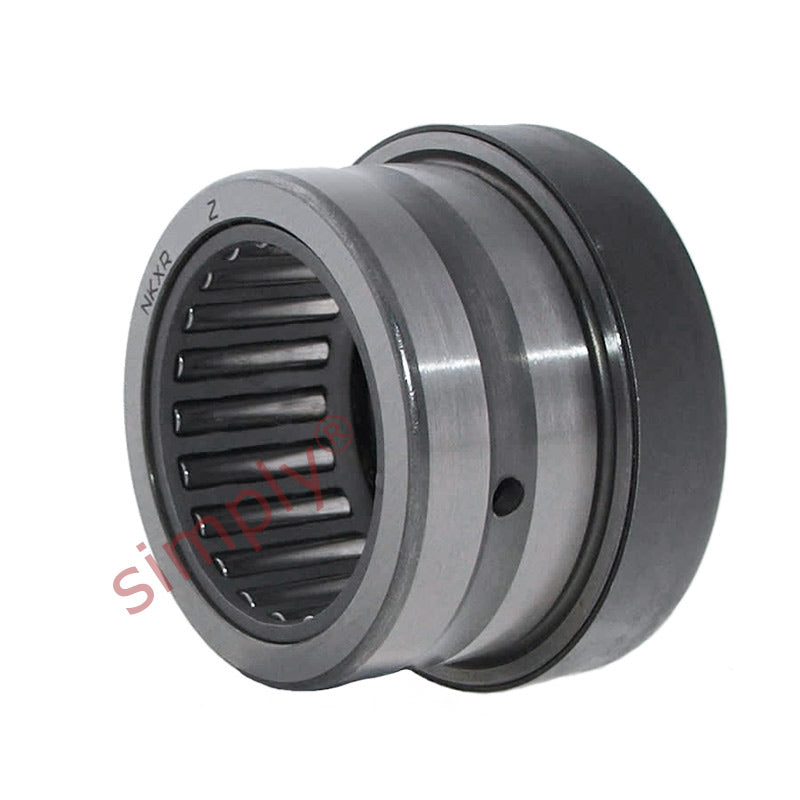

NKXR15Z Budget Needle Roller Thrust Bearing with Cover 15x24x23mm

Name: NKXR15Z Budget Needle Roller Thrust Bearing with Cover 15x24x23mm
Brand: Gen
SKU: NKXR15Z-EU
Price: 13.00 CHF
Availability: InStock

CHF 13.00 ex VAT

Sale Sold out

In stock

Price Break

10+ CHF 9.68

19+ CHF 9.14

29+ CHF 9.03

39+ CHF 8.92

49+ CHF 8.81

74+ CHF 8.70

99+ CHF 8.16

199+ CHF 8.05

249+ CHF 7.94

499+ CHF 7.83

999+ CHF 7.62

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Budget Needle Roller / Ball Roller Thrust Combination: Of a none separable design, the outer ring with integral housing washer and integral needle roller cage assembly.
Benefits: High thrust loading, easily mounted

Brand / Quality:: EU Budget - Economy Quality
Inside Diameter:: 15mm
Outside Diameter:: 24mm
Width:: 23mm
Seals / Shields:: Metal Shields

Technical

Fw	15mm
D	24mm
C	23mm
Dynamic load	11200 N
Static load	14000 N
Axial dynamic load	11200 N
Axial static load	27000 N
Fatigue load limit radial Pu	1660 N
Fatigue load limit axial Pu	2450 N
Min load factor A	0.058
Speed in grease	3200 rpm
Speed in oil	4300 rpm
C1	9mm
C2	6.5mm
d	15mm
D2	29.2mm
r1r2 min	0.3mm
da	23.7mm
ra max	0.3mm
rb max	0.3mm
di	12mm
F	15mm
B1	16mm
Inner ring	IR12x15x16
Weight	45 g
