SKU: NKXR15Z-MB

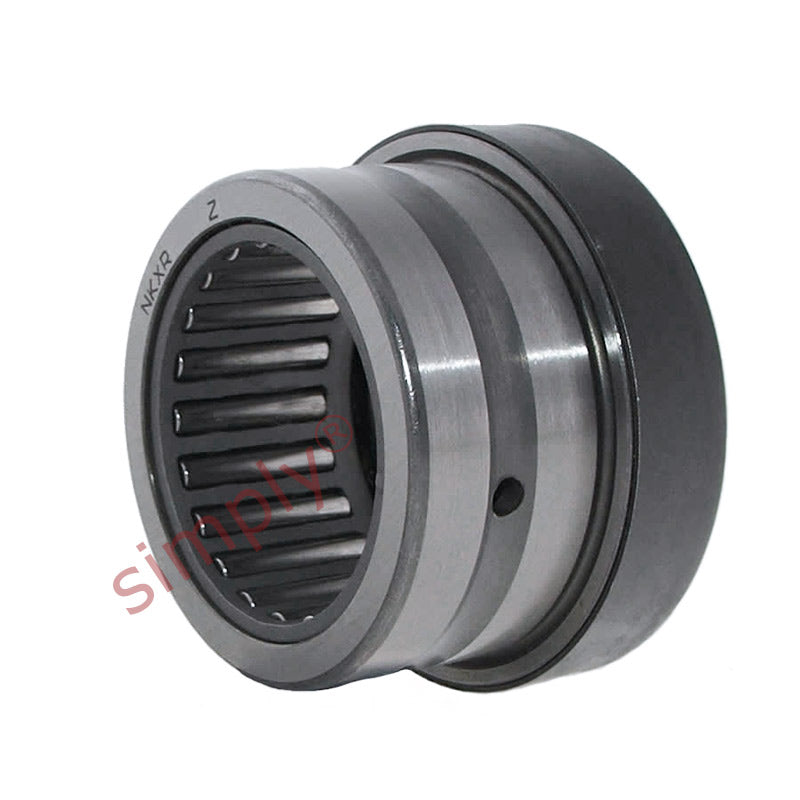

Major Brand NKXR15Z Needle Roller Thrust Bearing without Cover 15x24x23mm
Major Brand NKXR15Z Needle Roller Thrust Bearing without Cover 15x24x23mm
Regular price
CHF 31.00
ex VAT
Regular price
Sale price
CHF 31.00
ex VAT
In stock
Price Break
10+
CHF 24.01
19+
CHF 22.66
29+
CHF 22.39
39+
CHF 22.12
49+
CHF 21.85
74+
CHF 21.58
99+
CHF 20.24
199+
CHF 19.97
249+
CHF 19.70
499+
CHF 19.43
999+
CHF 18.89
Description
Description
|
Needle Roller / Ball Roller Thrust Combination: Of a none separable design, the outer ring with integral housing washer and integral needle roller cage assembly. Benefits: High thrust loading, easily mounted |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 24mm
- Width:
- 23mm
Technical
Technical
| Fw | 15mm |
|---|---|
| D | 24mm |
| C | 23mm |
| Dynamic load | 11200 N |
| Static load | 14000 N |
| Axial dynamic load | 11200 N |
| Axial static load | 27000 N |
| Fatigue load limit radial Pu | 1660 N |
| Fatigue load limit axial Pu | 2450 N |
| Min load factor A | 0.058 |
| Speed in grease | 3200 rpm |
| Speed in oil | 4300 rpm |
| C1 | 9mm |
| C2 | 6.5mm |
| d | 15 |
