SKU: NKXR17-EU

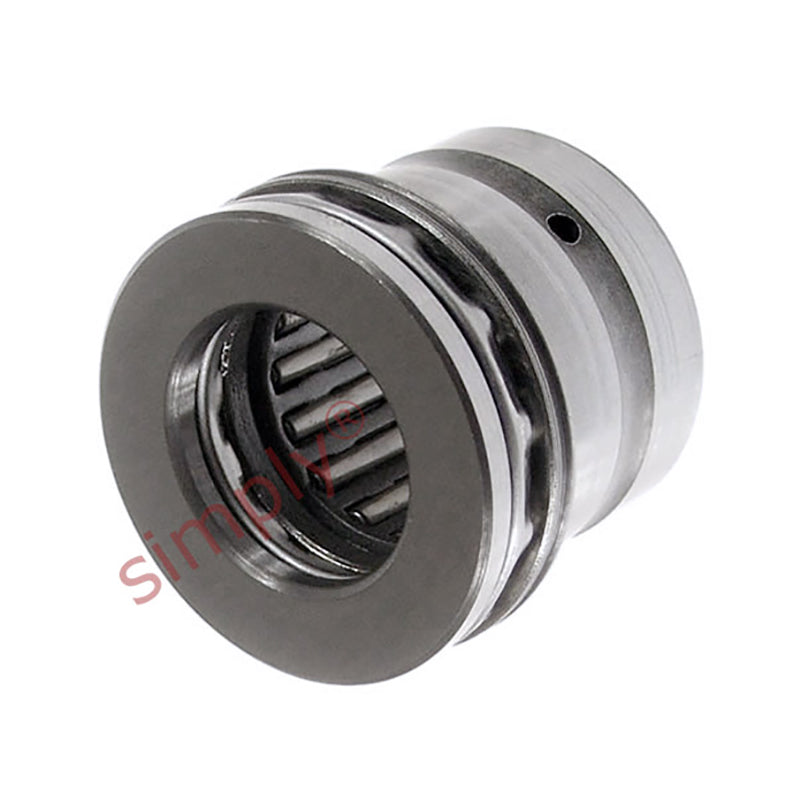

NKXR17 Budget Needle Roller Thrust Bearing without Cover 17x26x25mm
NKXR17 Budget Needle Roller Thrust Bearing without Cover 17x26x25mm
Regular price
CHF 16.00
ex VAT
Regular price
Sale price
CHF 16.00
ex VAT
In stock
Price Break
10+
CHF 12.01
19+
CHF 11.33
29+
CHF 11.20
39+
CHF 11.06
49+
CHF 10.93
74+
CHF 10.79
99+
CHF 10.12
199+
CHF 9.98
249+
CHF 9.85
499+
CHF 9.71
999+
CHF 9.44
Description
Description
Budget Needle Roller / Ball Roller Thrust Combination: Of a separable design, the outer ring with integral housing washer and integral needle roller cage assembly, the ball roller and the shaft washer can all be mounted individually. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 26mm
- Width:
- 25mm
Technical
Technical
| Fw | 17mm |
|---|---|
| D | 26mm |
| C | 25mm |
| Dynamic load | 12300 N |
| Static load | 16600 N |
| Axial dynamic load | 12200 N |
| Axial static load | 31500 N |
| Fatigue load limit radial Pu | 1960 N |
| Fatigue load limit axial Pu | 2850 N |
| Min load factor A | 0.079 |
| Speed in grease | 3200 rpm |
| Speed in oil | 4300 rpm |
| C1 | 9mm |
| C2 | 8mm |
| d | 17mm |
| D1 | 30mm |
| r1r2 min | 0.3mm |
| da | 25.7mm |
| ra max | 0.3mm |
| rb max | 0.3mm |
| di | 14mm |
| F | 17mm |
| B1 | 17mm |
| Inner ring | IR14x17x17 |
| Weight | 50 g |
