SKU: NKXR20Z-EU

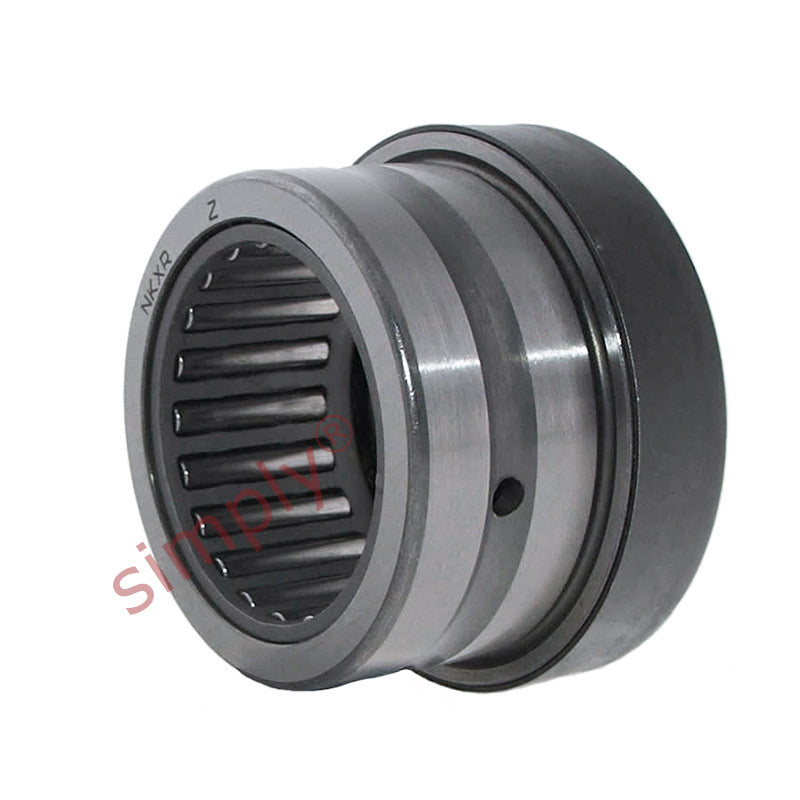

NKXR20Z Budget Needle Roller Thrust Bearing with Cover 20x30x30mm
NKXR20Z Budget Needle Roller Thrust Bearing with Cover 20x30x30mm
Regular price
CHF 29.00
ex VAT
Regular price
Sale price
CHF 29.00
ex VAT
In stock
Price Break
10+
CHF 23.08
19+
CHF 21.78
29+
CHF 21.52
39+
CHF 21.26
49+
CHF 21.00
74+
CHF 20.74
99+
CHF 19.45
199+
CHF 19.19
249+
CHF 18.93
499+
CHF 18.67
999+
CHF 18.15
Description
Description
|
Budget Needle Roller / Ball Roller Thrust Combination: Of a none separable design, the outer ring with integral housing washer and integral needle roller cage assembly. Benefits: High thrust loading, easily mounted |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 30mm
- Width:
- 30mm
- Seals / Shields:
- Metal Shields
Technical
Technical
| Fw | 20mm |
|---|---|
| D | 30mm |
| C | 30mm |
| Dynamic load | 16800 N |
| Static load | 26000 N |
| Axial dynamic load | 18600 N |
| Axial static load | 48000 N |
| Fatigue load limit radial Pu | 3050 N |
| Fatigue load limit axial Pu | 4650 N |
| Min load factor A | 0.18 |
| Speed in grease | 2800 rpm |
| Speed in oil | 3800 rpm |
| C1 | 10mm |
| C2 | 10.5mm |
| d | 20mm |
| D2 | 36.2mm |
| r1r2 min | 0.3mm |
| da | 30.7mm |
| ra max | 0.3mm |
| rb max | 0.3mm |
| di | 17mm |
| F | 20mm |
| B1 | 20mm |
| Inner ring | IR17x20x20 |
| Weight | 84 g |
