SKU: NKXR20Z-MB

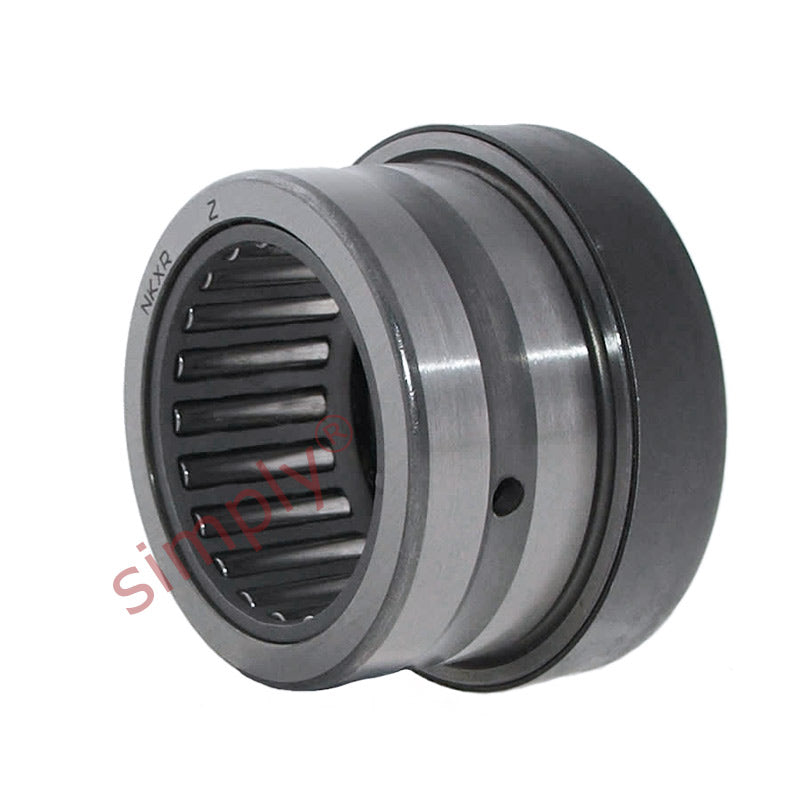

Major Brand NKXR20Z Needle Roller Thrust Bearing without Cover 20x30x30mm
Major Brand NKXR20Z Needle Roller Thrust Bearing without Cover 20x30x30mm
Regular price
CHF 77.67
ex VAT
Regular price
Sale price
CHF 77.67
ex VAT
In stock
Price Break
10+
CHF 69.13
19+
CHF 65.24
29+
CHF 64.47
39+
CHF 63.69
49+
CHF 62.91
74+
CHF 62.14
99+
CHF 58.25
199+
CHF 57.48
249+
CHF 56.70
499+
CHF 55.92
999+
CHF 54.37
Couldn't load pickup availability
Description
Description
|
Needle Roller / Ball Roller Thrust Combination: Of a none separable design, the outer ring with integral housing washer and integral needle roller cage assembly. Benefits: High thrust loading, easily mounted |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 30mm
- Width:
- 30mm
Technical
Technical
| Fw | 20mm |
|---|---|
| D | 30mm |
| C | 30mm |
| Dynamic load | 16800 N |
| Static load | 26000 N |
| Axial dynamic load | 18600 N |
| Axial static load | 48000 N |
| Fatigue load limit radial Pu | 3050 N |
| Fatigue load limit axial Pu | 4650 N |
| Min load factor A | 0.18 |
| Speed in grease | 2800 rpm |
| Speed in oil | 3800 rpm |
| C1 | 10mm |
| C2 | 10.5mm |
| d | 20 |
