SKU: NKXR25Z-EU

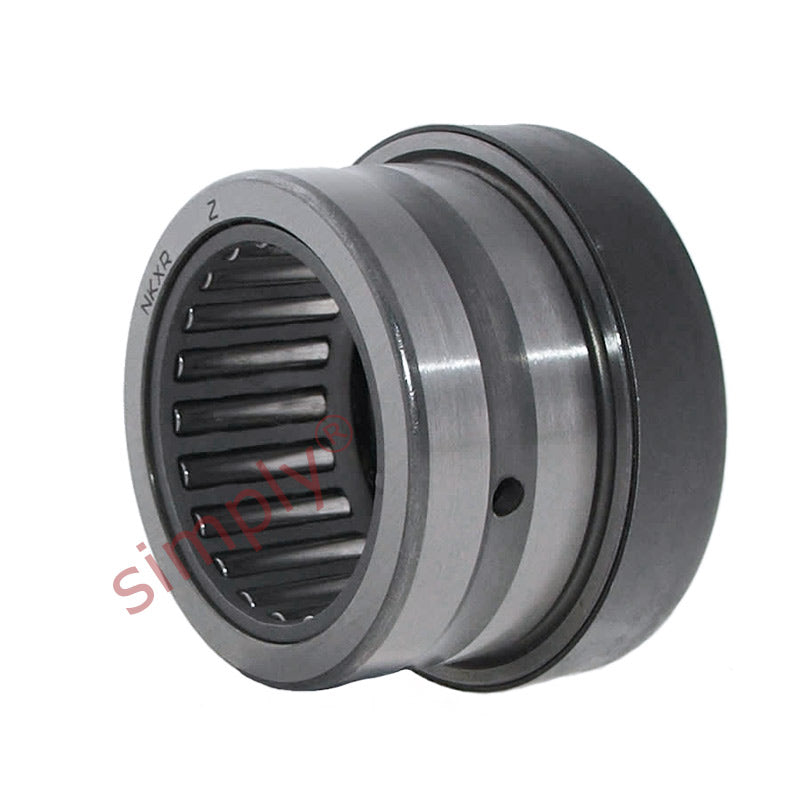

NKXR25Z Budget Needle Roller Thrust Bearing with Cover 25x37x30mm

Name: NKXR25Z Budget Needle Roller Thrust Bearing with Cover 25x37x30mm
Brand: Gen
SKU: NKXR25Z-EU
Price: 20.00 CHF
Availability: InStock

CHF 20.00 ex VAT

Sale Sold out

In stock

Price Break

10+ CHF 15.63

19+ CHF 14.75

29+ CHF 14.57

39+ CHF 14.40

49+ CHF 14.22

74+ CHF 14.05

99+ CHF 13.17

199+ CHF 12.99

249+ CHF 12.82

499+ CHF 12.64

999+ CHF 12.29

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Budget Needle Roller / Ball Roller Thrust Combination: Of a none separable design, the outer ring with integral housing washer and integral needle roller cage assembly.
Benefits: High thrust loading, easily mounted

Brand / Quality:: EU Budget - Economy Quality
Inside Diameter:: 25mm
Outside Diameter:: 37mm
Width:: 30mm
Seals / Shields:: Metal Shields

Technical

Fw	25mm
D	37mm
C	30mm
Dynamic load	19000 N
Static load	32500 N
Axial dynamic load	25000 N
Axial static load	69500 N
Fatigue load limit radial Pu	4000 N
Fatigue load limit axial Pu	6800 N
Min load factor A	0.39
Speed in grease	2200 rpm
Speed in oil	3200 rpm
C1	11mm
C2	9.5mm
d	25mm
D2	43.2mm
r1r2 min	0.6mm
da	37.7mm
ra max	0.6mm
rb max	0.3mm
di	20mm
F	25mm
B1	20mm
Inner ring	IR20x25x20
Weight	130 g
