SKU: NKXR35-EU

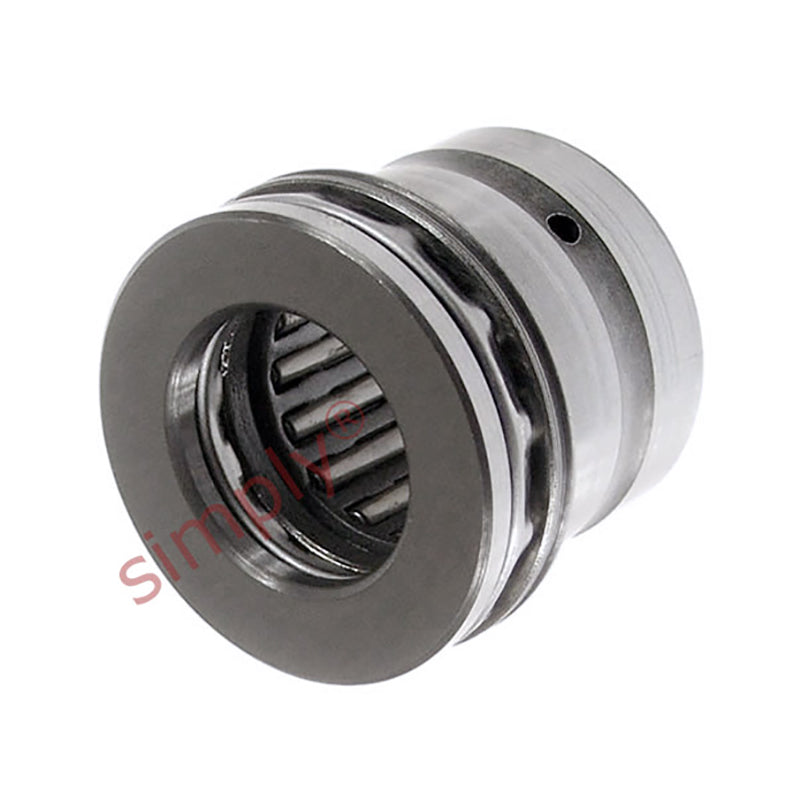

NKXR35 Budget Needle Roller Thrust Bearing without Cover 35x47x30mm
NKXR35 Budget Needle Roller Thrust Bearing without Cover 35x47x30mm
Regular price
CHF 38.00
ex VAT
Regular price
Sale price
CHF 38.00
ex VAT
In stock
Price Break
10+
CHF 29.78
19+
CHF 28.11
29+
CHF 27.77
39+
CHF 27.44
49+
CHF 27.10
74+
CHF 26.77
99+
CHF 25.10
199+
CHF 24.76
249+
CHF 24.43
499+
CHF 24.09
999+
CHF 23.42
Description
Description
Budget Needle Roller / Ball Roller Thrust Combination: Of a separable design, the outer ring with integral housing washer and integral needle roller cage assembly, the ball roller and the shaft washer can all be mounted individually. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 47mm
- Width:
- 30mm
Technical
Technical
| Fw | 35mm |
|---|---|
| D | 47mm |
| C | 30mm |
| Dynamic load | 24600 N |
| Static load | 45000 N |
| Axial dynamic load | 29000 N |
| Axial static load | 93000 N |
| Fatigue load limit radial Pu | 5600 N |
| Fatigue load limit axial Pu | 9150 N |
| Min load factor A | 0.69 |
| Speed in grease | 1900 rpm |
| Speed in oil | 2800 rpm |
| C1 | 12mm |
| C2 | 9mm |
| d | 35mm |
| D1 | 52mm |
| r1r2 min | 0.6mm |
| da | 47.7mm |
| ra max | 0.6mm |
| rb max | 0.3mm |
| di | 30mm |
| F | 35mm |
| B1 | 20mm |
| Inner ring | IR30x35x20 |
| Weight | 160 g |
