• NKXR35Z Budget Needle Roller Thrust Bearing with Cover 35x47x30mm
1 1

SKU: NKXR35Z-EU

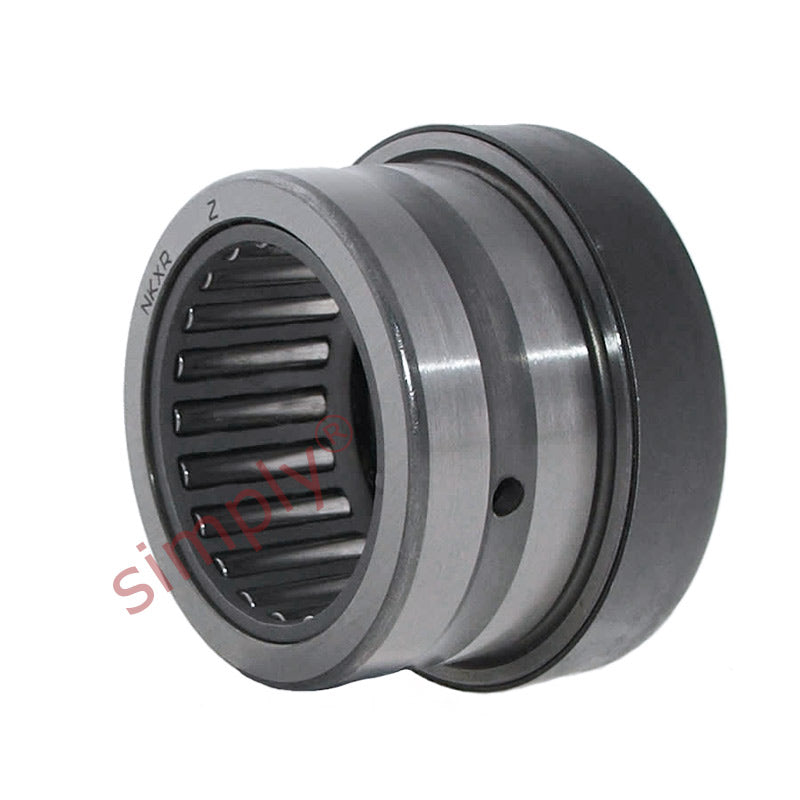

NKXR35Z Budget Needle Roller Thrust Bearing with Cover 35x47x30mm

NKXR35Z Budget Needle Roller Thrust Bearing with Cover 35x47x30mm
CHF 30.00 ex VAT
CHF 30.00 ex VAT
Sale Sold out

In stock

Price Break
10+ CHF 23.49
19+ CHF 22.17
29+ CHF 21.90
39+ CHF 21.64
49+ CHF 21.38
74+ CHF 21.11
99+ CHF 19.79
199+ CHF 19.53
249+ CHF 19.26
499+ CHF 19.00
999+ CHF 18.47
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Budget Needle Roller / Ball Roller Thrust Combination: Of a none separable design, the outer ring with integral housing washer and integral needle roller cage assembly.
Benefits: High thrust loading, easily mounted
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
35mm
Outside Diameter:
47mm
Width:
30mm
Seals / Shields:
Metal Shields
Technical
Fw 35mm
D 47mm
C 30mm
Dynamic load 24600 N
Static load 45000 N
Axial dynamic load 29000 N
Axial static load 93000 N
Fatigue load limit radial Pu 5600 N
Fatigue load limit axial Pu 9150 N
Min load factor A 0.69
Speed in grease 1900 rpm
Speed in oil 2800 rpm
C1 12mm
C2 9mm
d 35mm
D2 53.2mm
r1r2 min 0.6mm
da 47.7mm
ra max 0.6mm
rb max 0.3mm
di 30mm
F 35mm
B1 20mm
Inner ring IR30x35x20
Weight 170 g
