SKU: NKXR40-EU

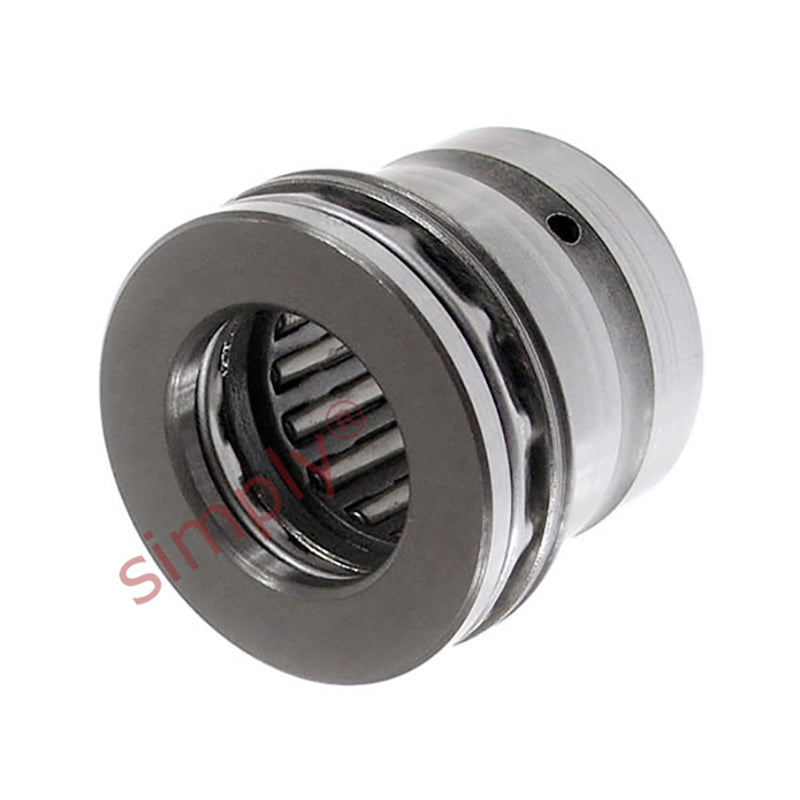

NKXR40 Budget Needle Roller Thrust Bearing without Cover 40x52x32mm
NKXR40 Budget Needle Roller Thrust Bearing without Cover 40x52x32mm
Regular price
CHF 77.00
ex VAT
Regular price
Sale price
CHF 77.00
ex VAT
In stock
Price Break
10+
CHF 60.51
19+
CHF 57.11
29+
CHF 56.43
39+
CHF 55.75
49+
CHF 55.07
74+
CHF 54.39
99+
CHF 50.99
199+
CHF 50.31
249+
CHF 49.63
499+
CHF 48.95
999+
CHF 47.59
Description
Description
Budget Needle Roller / Ball Roller Thrust Combination: Of a separable design, the outer ring with integral housing washer and integral needle roller cage assembly, the ball roller and the shaft washer can all be mounted individually. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 52mm
- Width:
- 32mm
Technical
Technical
| Fw | 40mm |
|---|---|
| D | 52mm |
| C | 32mm |
| Dynamic load | 26400 N |
| Static load | 51000 N |
| Axial dynamic load | 43000 N |
| Axial static load | 137000 N |
| Fatigue load limit radial Pu | 6300 N |
| Fatigue load limit axial Pu | 13700 N |
| Min load factor A | 1.5 |
| Speed in grease | 1700 rpm |
| Speed in oil | 2400 rpm |
| C1 | 13mm |
| C2 | 10mm |
| d | 40mm |
| D1 | 60mm |
| r1r2 min | 0.6mm |
| da | 55.7mm |
| ra max | 0.6mm |
| rb max | 0.3mm |
| di | 35mm |
| F | 40mm |
| B1 | 20mm |
| Inner ring | IR35x40x20 |
| Weight | 200 g |
