SKU: NKXR45-EU

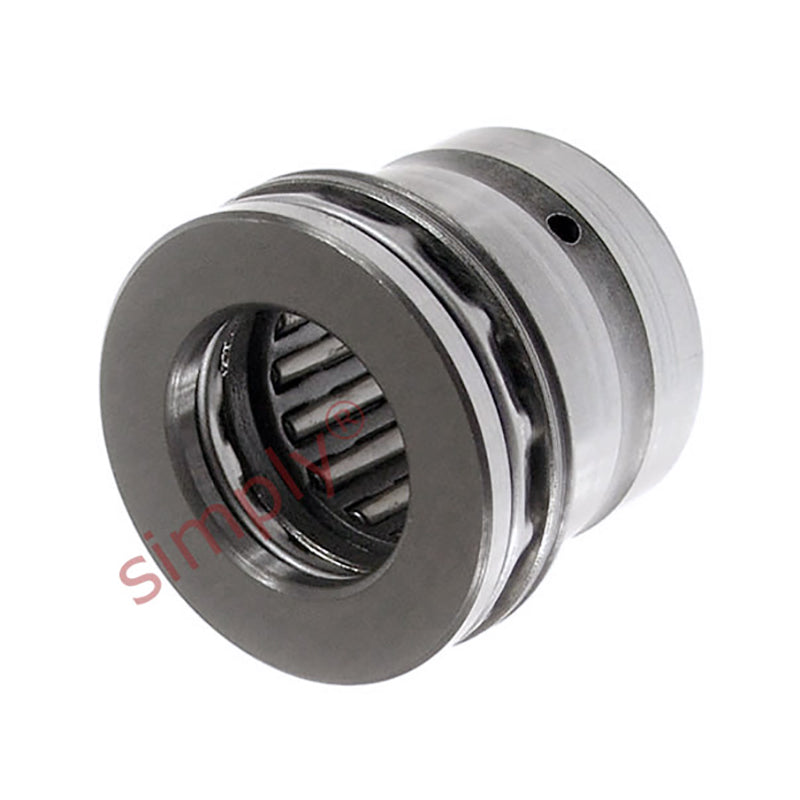

NKXR45 Budget Needle Roller Thrust Bearing without Cover 45x58x32mm
NKXR45 Budget Needle Roller Thrust Bearing without Cover 45x58x32mm
Regular price
CHF 91.00
ex VAT
Regular price
Sale price
CHF 91.00
ex VAT
In stock
Price Break
10+
CHF 72.18
19+
CHF 68.12
29+
CHF 67.31
39+
CHF 66.50
49+
CHF 65.69
74+
CHF 64.88
99+
CHF 60.83
199+
CHF 60.01
249+
CHF 59.20
499+
CHF 58.39
999+
CHF 56.77
Description
Description
Budget Needle Roller / Ball Roller Thrust Combination: Of a separable design, the outer ring with integral housing washer and integral needle roller cage assembly, the ball roller and the shaft washer can all be mounted individually. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 58mm
- Width:
- 32mm

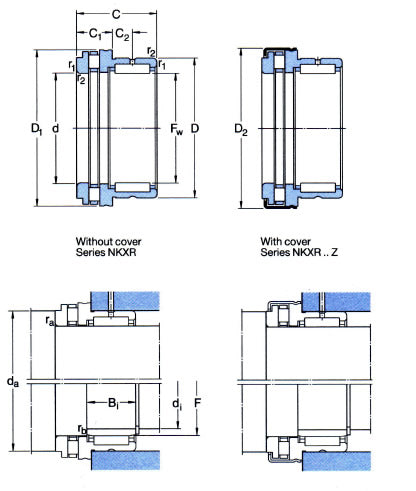

Technical
Technical
| Fw | 45mm |
|---|---|
| D | 58mm |
| C | 32mm |
| Dynamic load | 28100 N |
| Static load | 57000 N |
| Axial dynamic load | 45000 N |
| Axial static load | 153000 N |
| Fatigue load limit radial Pu | 7100 N |
| Fatigue load limit axial Pu | 15300 N |
| Min load factor A | 1.9 |
| Speed in grease | 1600 rpm |
| Speed in oil | 2200 rpm |
| C1 | 14mm |
| C2 | 9mm |
| d | 45mm |
| D1 | 65mm |
| r1r2 min | 0.6mm |
| da | 60.6mm |
| ra max | 0.6mm |
| rb max | 0.3mm |
| di | 40mm |
| F | 45mm |
| B1 | 20mm |
| Inner ring | IR40x45x20 |
| Weight | 240 g |
