SKU: NKXR45Z-MB

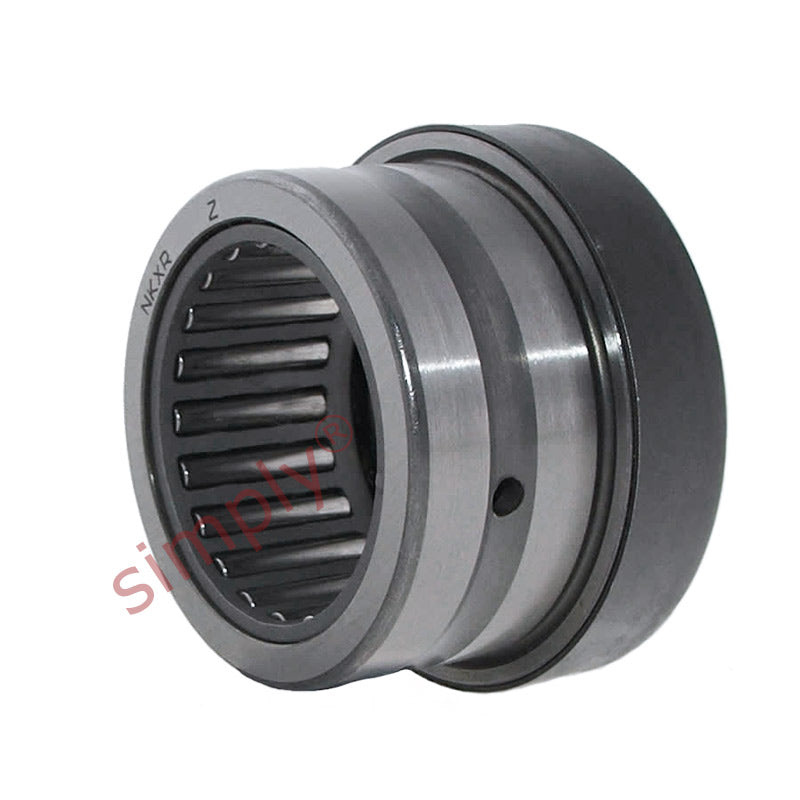

Major Brand NKXR45Z Needle Roller Thrust Bearing without Cover 45x58x32mm
Major Brand NKXR45Z Needle Roller Thrust Bearing without Cover 45x58x32mm
Regular price
CHF 152.00
ex VAT
Regular price
Sale price
CHF 152.00
ex VAT
In stock
Price Break
10+
CHF 120.42
19+
CHF 113.65
29+
CHF 112.30
39+
CHF 110.95
49+
CHF 109.59
74+
CHF 108.24
99+
CHF 101.48
199+
CHF 100.12
249+
CHF 98.77
499+
CHF 97.42
999+
CHF 94.71
Description
Description
|
Needle Roller / Ball Roller Thrust Combination: Of a none separable design, the outer ring with integral housing washer and integral needle roller cage assembly. Benefits: High thrust loading, easily mounted |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 58mm
- Width:
- 32mm
Technical
Technical
| Fw | 45mm |
|---|---|
| D | 58mm |
| C | 32mm |
| Dynamic load | 28100 N |
| Static load | 57000 N |
| Axial dynamic load | 45000 N |
| Axial static load | 153000 N |
| Fatigue load limit radial Pu | 7100 N |
| Fatigue load limit axial Pu | 15300 N |
| Min load factor A | 1.9 |
| Speed in grease | 1600 rpm |
| Speed in oil | 2200 rpm |
| C1 | 14mm |
| C2 | 9mm |
| d | 45 |
