SKU: NKXR50Z-EU

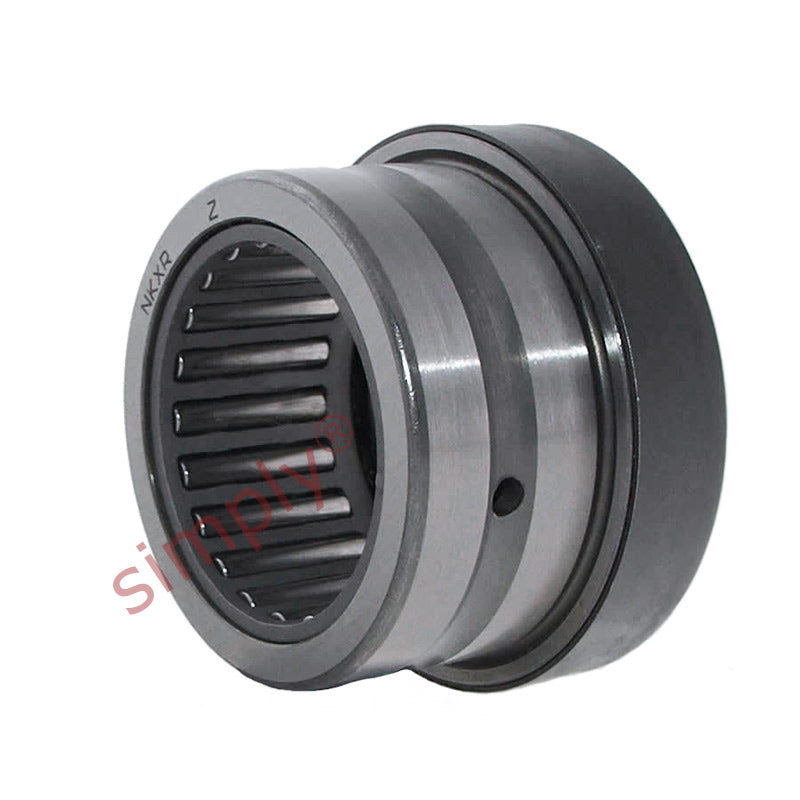

NKXR50Z Budget Needle Roller Thrust Bearing with Cover 50x62x35mm
NKXR50Z Budget Needle Roller Thrust Bearing with Cover 50x62x35mm
Regular price
CHF 56.64
ex VAT
Regular price
Sale price
CHF 56.64
ex VAT
In stock
Price Break
10+
CHF 50.41
19+
CHF 47.58
29+
CHF 47.01
39+
CHF 46.44
49+
CHF 45.88
74+
CHF 45.31
99+
CHF 42.48
199+
CHF 41.91
249+
CHF 41.35
499+
CHF 40.78
999+
CHF 39.65
Couldn't load pickup availability
Description
Description
|
Budget Needle Roller / Ball Roller Thrust Combination: Of a none separable design, the outer ring with integral housing washer and integral needle roller cage assembly. Benefits: High thrust loading, easily mounted |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 62mm
- Width:
- 35mm
- Seals / Shields:
- Metal Shields
Technical
Technical
| Fw | 50mm |
|---|---|
| D | 62mm |
| C | 35mm |
| Dynamic load | 38000 N |
| Static load | 80000 N |
| Axial dynamic load | 47500 N |
| Axial static load | 166000 N |
| Fatigue load limit radial Pu | 9650 N |
| Fatigue load limit axial Pu | 16600 N |
| Min load factor A | 2.2 |
| Speed in grease | 1600 rpm |
| Speed in oil | 2200 rpm |
| C1 | 14mm |
| C2 | 10mm |
| d | 50mm |
| D2 | 71.5mm |
| r1r2 min | 0.6mm |
| da | 65.6mm |
| ra max | 0.6mm |
| rb max | 0.3mm |
| di | 45mm |
| F | 50mm |
| B1 | 25mm |
| Inner ring | IR45x50x25 |
| Weight | 290 g |
