SKU: NKXR50Z-MB

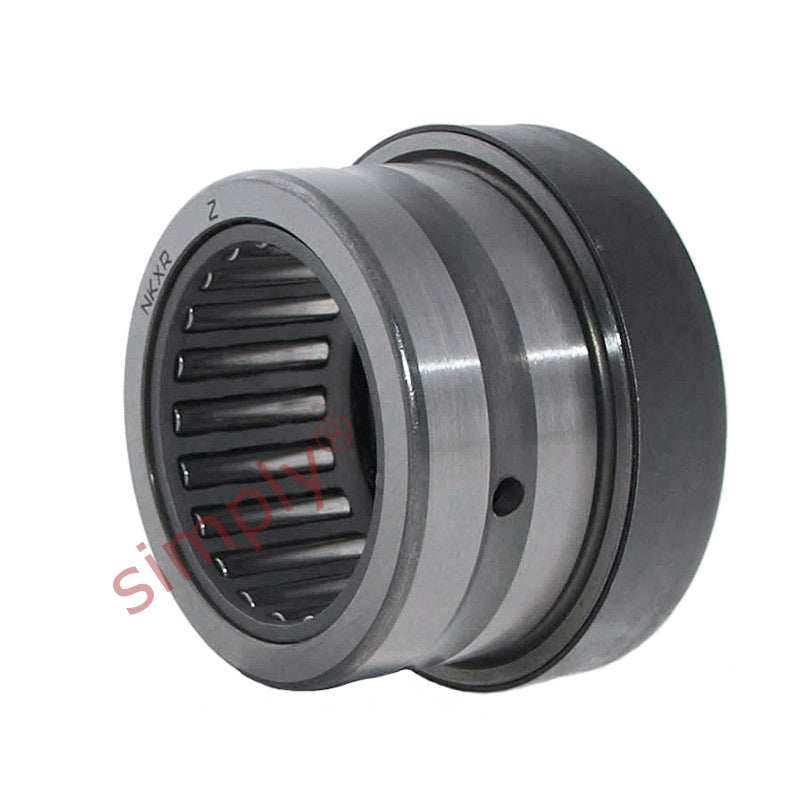

Major Brand NKXR50Z Needle Roller Thrust Bearing without Cover 50x62x35mm
Major Brand NKXR50Z Needle Roller Thrust Bearing without Cover 50x62x35mm
Regular price
CHF 243.00
ex VAT
Regular price
Sale price
CHF 243.00
ex VAT
In stock
Price Break
10+
CHF 192.94
19+
CHF 182.10
29+
CHF 179.93
39+
CHF 177.77
49+
CHF 175.60
74+
CHF 173.43
99+
CHF 162.59
199+
CHF 160.42
249+
CHF 158.25
499+
CHF 156.09
999+
CHF 151.75
Description
Description
|
Needle Roller / Ball Roller Thrust Combination: Of a none separable design, the outer ring with integral housing washer and integral needle roller cage assembly. Benefits: High thrust loading, easily mounted |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 62mm
- Width:
- 35mm
Technical
Technical
| Fw | 50mm |
|---|---|
| D | 62mm |
| C | 35mm |
| Dynamic load | 38000 N |
| Static load | 80000 N |
| Axial dynamic load | 47500 N |
| Axial static load | 166000 N |
| Fatigue load limit radial Pu | 9650 N |
| Fatigue load limit axial Pu | 16600 N |
| Min load factor A | 2.2 |
| Speed in grease | 1600 rpm |
| Speed in oil | 2200 rpm |
| C1 | 14mm |
| C2 | 10mm |
| d | 50 |
