SKU: NN3007 K/SP-SKF

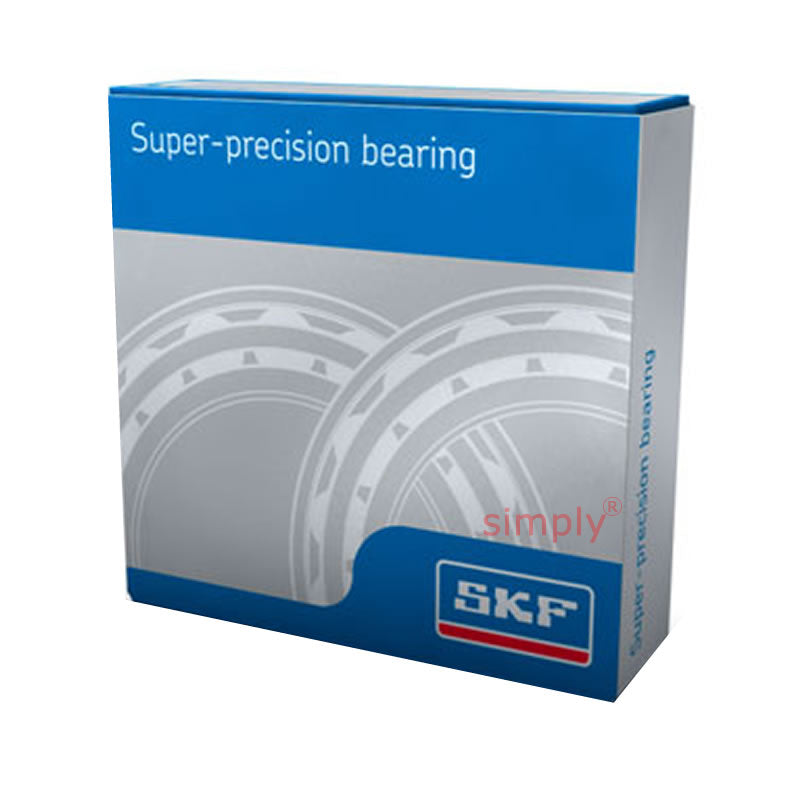

SKF NN3007KSP Super Precision Double Row Cylindrical Roller Spindle Bearing 35x62x20mm
SKF NN3007KSP Super Precision Double Row Cylindrical Roller Spindle Bearing 35x62x20mm
Regular price
CHF 306.00
ex VAT
Regular price
Sale price
CHF 306.00
ex VAT
In stock
Price Break
3+
CHF 243.52
5+
CHF 229.84
10+
CHF 227.10
25+
CHF 224.36
49+
CHF 221.63
74+
CHF 218.89
17+
CHF 205.21
117+
CHF 202.48
249+
CHF 199.74
417+
CHF 197.00
179+
CHF 191.53
Description
Description
SKF Super Precision Double Row Cylindrical Roller Bearings: Double row cylindrical roller bearings SKF super-precision double row cylindrical roller bearings are manufactured as standard in the NN 30 and NNU 49 series. Both series are available with either a cylindrical or a 1:12 tapered bore (designation suffix K). In machine tool applications, cylindrical roller bearings with a tapered bore are preferred over bearings with a cylindrical bore, because the taper enables more accurate adjustment of clearance or preload during mounting.
Benefits: High-speed capability, high radial load carrying capacity, high rigidity, low friction, low cross-sectional height.
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 62mm
- Width:
- 20mm
- Seals / Shields:
- None
- Style:
- Super Precision Cylindrical Roller Bearings
Technical
Technical
| --- | Bearing Dimensions |
|---|---|
| d | 35mm |
| D | 62mm |
| B | 20mm |
| --- | Speeds and loads |
| Dynamic load C | 39.1 Kn |
| Static load C<sub>o</sub> | 50 kn |
| Fatigue load P<sub>u</sub> | 5.4 kN |
| Speed in grease | 14000rpm |
| Speeed in oil | 16000rpm |
| Weight | 0.25kg |
| --- | Abutment and fillet dimensions |
| d<sub>1</sub> | 45.8mm |
| E | 55mm |
| r<sub>1 and 2 min</sub> | 1mm |
| r<sub>3 and 4 min</sub> | 0.6mm |
| S<sup>2</sup> | 1.5mm |
| d<sub>a</sub> min | 40mm |
| D<sub>a min</sub> | 56mm |
| D<sub>a max</sub> | 57mm |
| d<sub>n</sub> | 1mm |
| d<sub>n</sub> | 54mm |
| Reference grease quantity | 1.9 grams |
