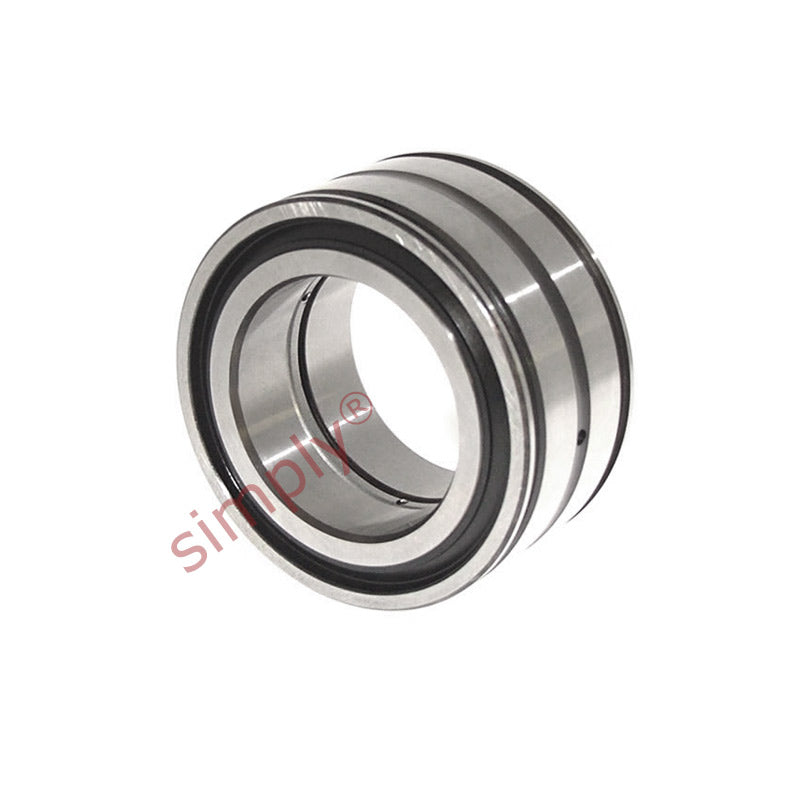

NNF50112LSV2NR Full Complement Cylindrical Roller Bearing 55x90x46mm

Name: NNF50112LSV2NR Full Complement Cylindrical Roller Bearing 55x90x46mm
Brand: Major Brand
SKU: NNF.5011.2LS.V2NR.MB
Price: 165.00 CHF
Availability: InStock

CHF 165.00 ex VAT

Sale Sold out

In stock

Price Break

10+ CHF 130.74

19+ CHF 123.40

29+ CHF 121.93

39+ CHF 120.46

49+ CHF 118.99

74+ CHF 117.52

99+ CHF 110.18

199+ CHF 108.71

249+ CHF 107.24

499+ CHF 105.77

999+ CHF 102.83

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

NNF - LSV Series Double Row Full Complement Cylindrical Roller Bearings: The outer ring has a central flange and a two piece inner ring which has two flanges on each half, each half is held together by a retaining ring which also retains the outer ring, each bearing is supplied assembled with two rubber seals. The outer race is 1mm narrower than the inner and is supplied with two snap rings grooves for alternative mounting arrangements with sleeves etc.
Benefits: Snap ring groove location, sealed and greased, tilting moment tolerant

Brand / Quality:: Major Brand - High Quality
Inside Diameter:: 55mm
Outside Diameter:: 90mm
Width:: 46mm
Seals / Shields:: Rubber Sealed
Clearance:: * Standard

Technical

d	55mm
D	90mm
B	46mm
Weight	1.18kg
