SKU: NNF5017ADA-2LSV-SKF

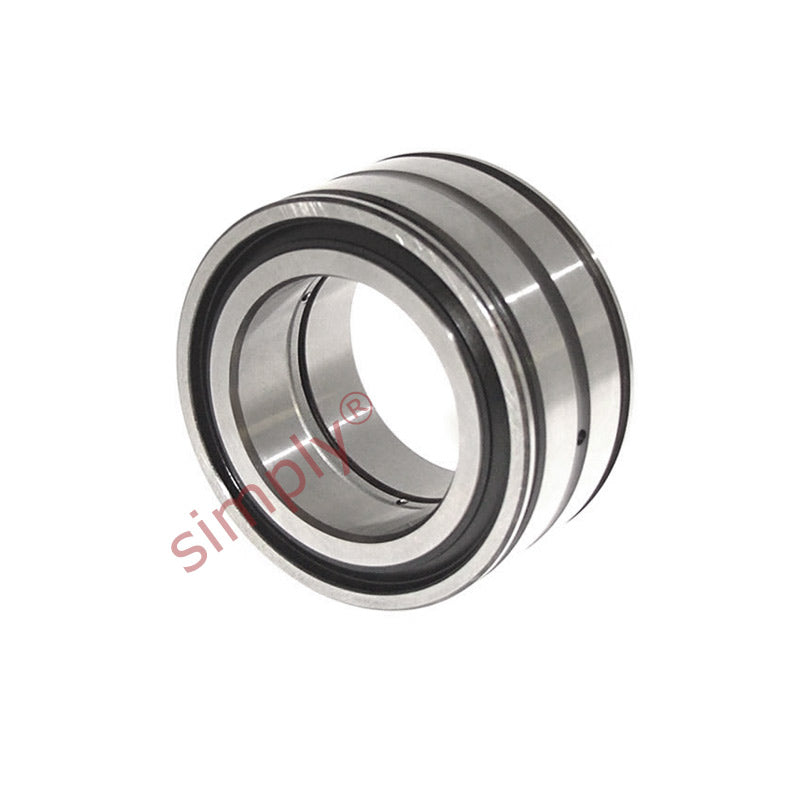

SKF NNF5017ADA2LSV Sealed Double Row Full Complement Cylindrical Roller Bearing 85x130x60mm

Name: SKF NNF5017ADA2LSV Sealed Double Row Full Complement Cylindrical Roller Bearing 85x130x60mm
Brand: SKF
SKU: NNF5017ADA-2LSV-SKF
Price: 681.00 CHF
Availability: InStock

CHF 681.00 ex VAT

Sale Sold out

In stock

Price Break

10+ CHF 542.61

19+ CHF 512.13

29+ CHF 506.03

39+ CHF 499.93

49+ CHF 493.84

74+ CHF 487.74

99+ CHF 457.26

199+ CHF 451.16

249+ CHF 445.06

499+ CHF 438.97

999+ CHF 426.77

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF NNF - LSV Series Double Row Full Complement Cylindrical Roller Bearings: The outer ring has a central flange and a two piece inner ring which has two flanges on each half, each half is held together by a retaining ring which also retains the outer ring, each bearing is supplied assembled with two rubber seals. The outer race is 1mm narrower than the inner and is supplied with two snap rings grooves for alternative mounting arrangements with sleeves etc.
Benefits: Snap ring groove location, sealed and greased, tilting moment tolerant

Brand / Quality:: SKF - High Quality
Inside Diameter:: 85mm
Outside Diameter:: 130mm
Width:: 60mm
Seals / Shields:: Rubber Sealed
Clearance:: * Standard

Technical

d	85mm
D	130mm
B	60mm
C	59mm
Dynamic load C	270 kN
Static load Co	430 kN
Fatigue load limit Pu	55 kN
Limiting speed	1000 rpm
Weight	2.75 kg
d1	101mm
D1	127mm
E	119.5mm
C1+0.2	54.2mm
C2	2.4mm
b	4.2mm
b1	5mm
K	3.5mm
r min	1.5mm
r3r4 min	0.6mm
da min	91mm
das	98.3mm
Da max	125mm
Ca1 - 0.2	49mm
Ca2 - 0.2	46mm
ra max	1.5mm
rb max	0.6mm
Snap ring	SW130
Din 471	130x4
