SKU: NNF5028ADA-2LSV-SKF

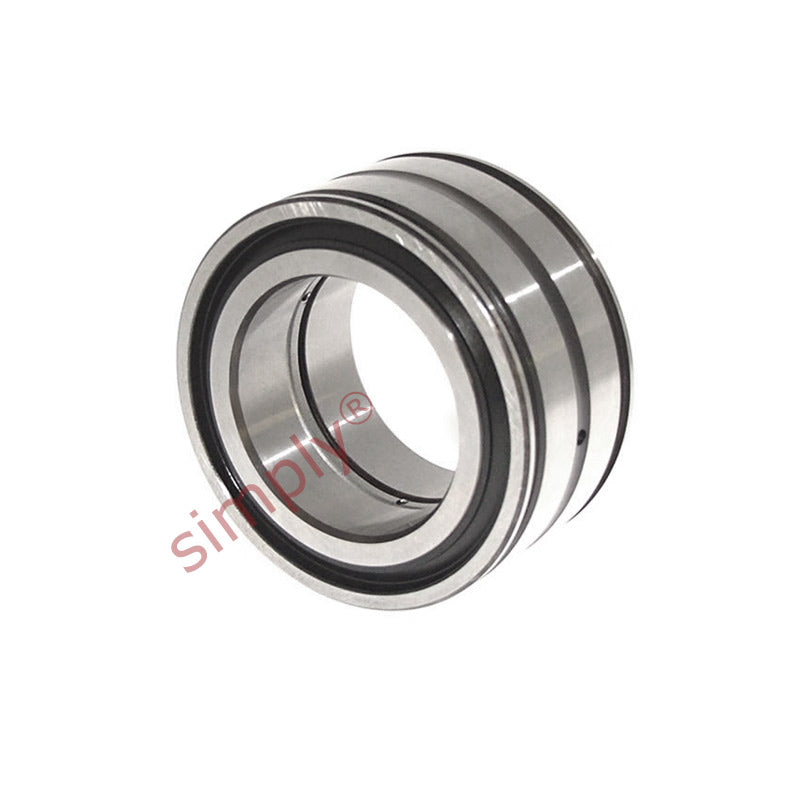

SKF NNF5028ADA2LSV Sealed Double Row Full Complement Cylindrical Roller Bearing 140x210x95mm

Name: SKF NNF5028ADA2LSV Sealed Double Row Full Complement Cylindrical Roller Bearing 140x210x95mm
Brand: SKF
SKU: NNF5028ADA-2LSV-SKF
Price: 2185.00 CHF
Availability: InStock

CHF 2,185.00 ex VAT

Sale Sold out

In stock

Price Break

10+ CHF 1,740.37

19+ CHF 1,642.60

29+ CHF 1,623.04

39+ CHF 1,603.49

49+ CHF 1,583.93

74+ CHF 1,564.38

99+ CHF 1,466.60

199+ CHF 1,447.05

249+ CHF 1,427.49

499+ CHF 1,407.94

999+ CHF 1,368.83

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF NNF - LSV Series Double Row Full Complement Cylindrical Roller Bearings: The outer ring has a central flange and a two piece inner ring which has two flanges on each half, each half is held together by a retaining ring which also retains the outer ring, each bearing is supplied assembled with two rubber seals. The outer race is 1mm narrower than the inner and is supplied with two snap rings grooves for alternative mounting arrangements with sleeves etc.
Benefits: Snap ring groove location, sealed and greased, tilting moment tolerant

Brand / Quality:: SKF - High Quality
Inside Diameter:: 140mm
Outside Diameter:: 210mm
Width:: 95mm
Seals / Shields:: Rubber Sealed
Clearance:: * Standard

Technical

d	140mm
D	210mm
B	95mm
C	94mm
Dynamic load C	644 kN
Static load Co	1120 kN
Fatigue load limit Pu	127 kN
Limiting speed	600 rpm
Weight	11 kg
d1	167mm
D1	206mm
E	195.5mm
C1+0.2	83.2mm
C2	5.4mm
b	5.2mm
b1	7mm
K	4mm
r min	1.8mm
r3r4 min	0.6mm
da min	147mm
das	162mm
Da max	205mm
Ca1 - 0.2	77mm
Ca2 - 0.2	73mm
ra max	1mm
rb max	0.6mm
Snap ring	SW210
Din 471	210x5
