SKU: NP1.1/2EC-RHP

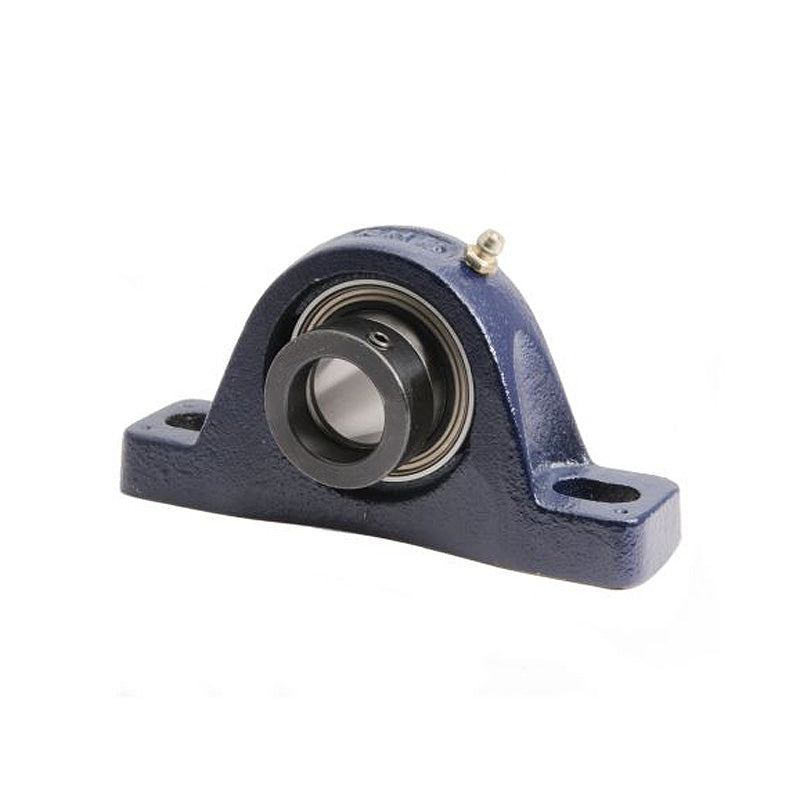

RHP NP1-1/2EC Two Bolt Cast Iron Pillow Block and 1-1/2 Bore Eccentric Collar Flat Back Insert
RHP NP1-1/2EC Two Bolt Cast Iron Pillow Block and 1-1/2 Bore Eccentric Collar Flat Back Insert
Regular price
CHF 77.19
ex VAT
Regular price
Sale price
CHF 77.19
ex VAT
In stock
Price Break
10+
CHF 68.70
19+
CHF 64.84
29+
CHF 64.07
39+
CHF 63.30
49+
CHF 62.52
74+
CHF 61.75
99+
CHF 57.89
199+
CHF 57.12
249+
CHF 56.35
499+
CHF 55.58
999+
CHF 54.03
Couldn't load pickup availability
Description
Description
|
RHP NP-EC Series Plummer / Pillow Housings: Supplied with a flat back sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar with a grub screw to facilitate securing the bearing to the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Style:
- NP
- Bolt Hole Centres:
- 5-5.827 inch
Technical
Technical
| Bore | 1-1/2 inch |
|---|---|
| L | 7.106 inch |
| H | 1.937 inch |
| H1 | 0.728 inch |
| H2 | 3.878 inch |
| J max | 5.827 inch |
| J min | 5 inch |
| G | 0.5 inch |
| A | 2.008 inch |
| A1 | 1.358 inch |
| B2 | 1.718 inch |
| s1 | 0.435 inch |
| d2 | 2.374 inch |
| Dynamic load Cr | 32500 N |
| Static load Cor | 19900 N |
| Rec max speed | 4000 rpm |
| Weight | 2.1 kg |
| Insert | <a href="advanced_search_result.php?keywords=1240-1-1/2ECG+insonly">1240-1-1/2ECG Click Here</a> |
| Casting group | 6 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
