SKU: NP1.1/8DEC-RHP

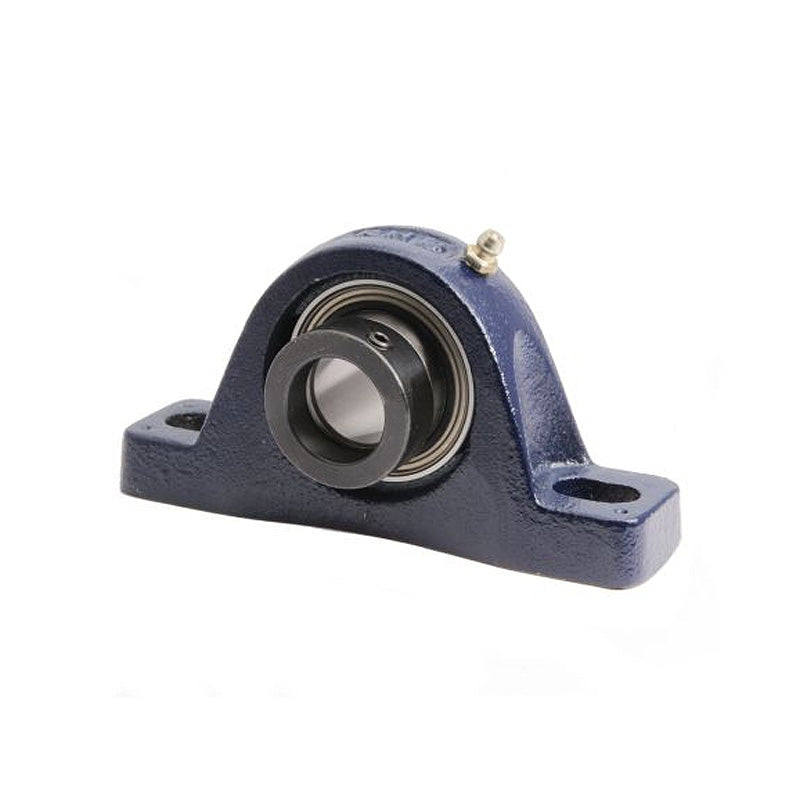

RHP NP1-1/8DEC Two Bolt Cast Iron Pillow Block and 1-1/8 Bore Eccentric Collar Full Width Insert
RHP NP1-1/8DEC Two Bolt Cast Iron Pillow Block and 1-1/8 Bore Eccentric Collar Full Width Insert
Regular price
CHF 64.28
ex VAT
Regular price
Sale price
CHF 64.28
ex VAT
In stock
Price Break
10+
CHF 57.21
19+
CHF 54.00
29+
CHF 53.35
39+
CHF 52.71
49+
CHF 52.07
74+
CHF 51.42
99+
CHF 48.21
199+
CHF 47.57
249+
CHF 46.92
499+
CHF 46.28
999+
CHF 45.00
Couldn't load pickup availability
Description
Description
|
RHP NP-DEC Series Plummer / Pillow Housings: Supplied with a full width sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar with a grub screw to facilitate securing the bearing to the shaft once fitted. The insert can be removed from the housings for future replacement as required. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 28.58mm = 1.125 (1-1/8) inch
- Style:
- NP
- Bolt Hole Centres:
- 4.272-5.098 inch
Technical
Technical
| Bore | 1-1/8 inch |
|---|---|
| L | 6.319 inch |
| H | 1.689 inch |
| H1 | 0.697 inch |
| H2 | 3.256 inch |
| J max | 5.098 inch |
| J min | 4.272 inch |
| G | 0.5 inch |
| A | 1.634 inch |
| A1 | 1.083 inch |
| B3 | 1.906 inch |
| s2 | 0.721 inch |
| d2 | 1.75 inch |
| Dynamic load Cr | 19500 N |
| Static load Cor | 11300 N |
| Rec max speed | 5300 rpm |
| Weight | 1.3 kg |
| Insert | <a href="advanced_search_result.php?keywords=1030-1-1/8DECG+insonly">1030-1-1/8DECG Click Here</a> |
| Casting group | 4 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
