SKU: NP1035K-RHP

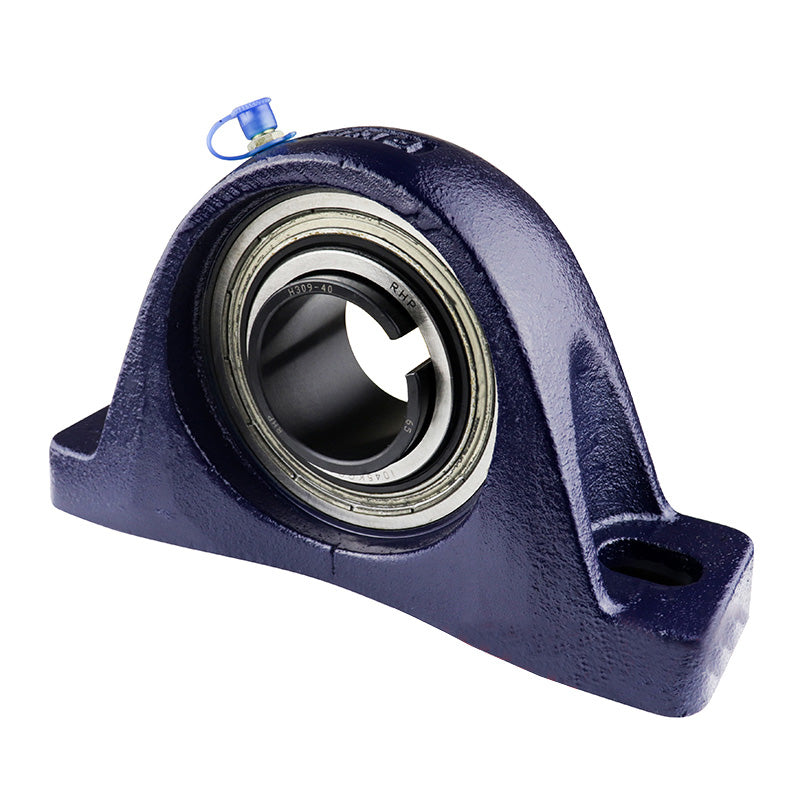

RHP NP1035K Two Bolt Cast Iron Pillow Block and 1-3/16 Bore and Taper Bore Insert (No Sleeve)
RHP NP1035K Two Bolt Cast Iron Pillow Block and 1-3/16 Bore and Taper Bore Insert (No Sleeve)
Regular price
CHF 63.40
ex VAT
Regular price
Sale price
CHF 63.40
ex VAT
In stock
Price Break
10+
CHF 56.43
19+
CHF 53.26
29+
CHF 52.62
39+
CHF 51.99
49+
CHF 51.35
74+
CHF 50.72
99+
CHF 47.55
199+
CHF 46.92
249+
CHF 46.28
499+
CHF 45.65
999+
CHF 44.38
Couldn't load pickup availability
Description
Description
|
RHP NP K Series Plummer / Pillow Housings: Supplied with a sealed full width taper bore bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing has a taper bore to accommodate fitting with a taper sleeve (not supplied) which is tightened using a lock nut to secure to the shaft after installation, the locknut is subsequently secured with the tab washer. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 30.16mm = 1.187 (1-3/16) inch
- Style:
- NP
- Bolt Hole Centres:
- 4.783-5.374 inch
Technical
Technical
| L | 6.535 inch |
|---|---|
| H | 1.874 inch |
| H1 | 0.689 inch |
| H2 | 3.661 inch |
| J max | 5.374 inch |
| J min | 4.783 inch |
| G | 0.5 inch |
| A | 1.752 inch |
| A1 | 1.201 |
| B5 | 1.378 |
| d4 | 2.047 inch |
| Dynamic load Cr | 25700 N |
| Static load Cor | 15300 N |
| Rec max speed | 4500 rpm |
| Weight | 1.7 kg |
| Insert | <a href="advanced_search_result.php?keywords=1035K+insonly">1035K Click Here</a> |
| Casting group | 5 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
