SKU: NP1045K-RHP

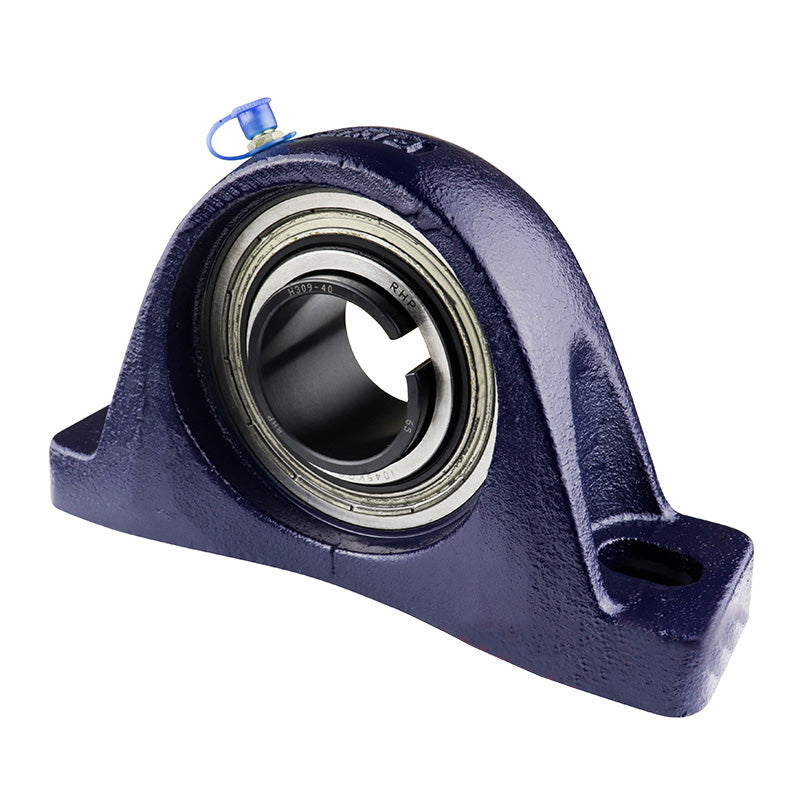

RHP NP1045K Two Bolt Cast Iron Pillow Block and 1-1/2 Bore and Taper Bore Insert (No Sleeve)
RHP NP1045K Two Bolt Cast Iron Pillow Block and 1-1/2 Bore and Taper Bore Insert (No Sleeve)
Regular price
CHF 83.85
ex VAT
Regular price
Sale price
CHF 83.85
ex VAT
In stock
Price Break
10+
CHF 74.63
19+
CHF 70.43
29+
CHF 69.60
39+
CHF 68.76
49+
CHF 67.92
74+
CHF 67.08
99+
CHF 62.89
199+
CHF 62.05
249+
CHF 61.21
499+
CHF 60.37
999+
CHF 58.70
Couldn't load pickup availability
Description
Description
|
RHP NP K Series Plummer / Pillow Housings: Supplied with a sealed full width taper bore bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing has a taper bore to accommodate fitting with a taper sleeve (not supplied) which is tightened using a lock nut to secure to the shaft after installation, the locknut is subsequently secured with the tab washer. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Style:
- NP
- Bolt Hole Centres:
- 5.531-6.083 inch
Technical
Technical
| L | 7.5 inch |
|---|---|
| H | 2.126 inch |
| H1 | 0.787 inch |
| H2 | 4.252 inch |
| J max | 6.083 inch |
| J min | 5.531 inch |
| G | 0.5 inch |
| A | 2.126 inch |
| A1 | 1.378 |
| B5 | 1.535 |
| d4 | 2.559 inch |
| Dynamic load Cr | 32500 N |
| Static load Cor | 20500 N |
| Rec max speed | 3700 rpm |
| Weight | 2.8 kg |
| Insert | <a href="advanced_search_result.php?keywords=1045K+insonly">1045K Click Here</a> |
| Casting group | 7 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
