SKU: NP1055K-RHP

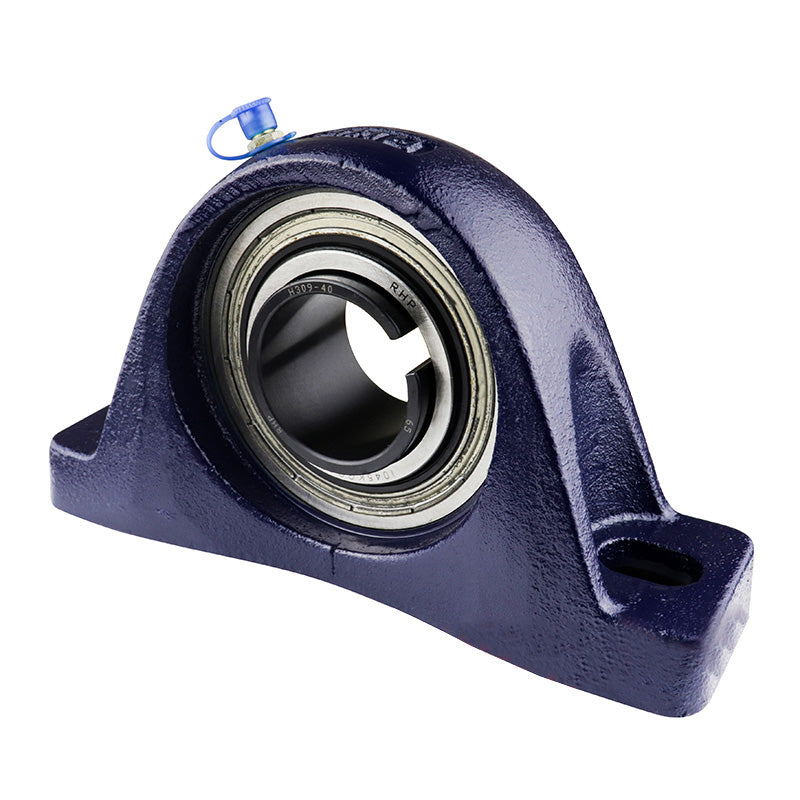

RHP NP1055K Two Bolt Cast Iron Pillow Block and 1-15/16 Bore and Taper Bore Insert (No Sleeve)
RHP NP1055K Two Bolt Cast Iron Pillow Block and 1-15/16 Bore and Taper Bore Insert (No Sleeve)
Regular price
CHF 136.69
ex VAT
Regular price
Sale price
CHF 136.69
ex VAT
In stock
Price Break
10+
CHF 121.65
19+
CHF 114.82
29+
CHF 113.45
39+
CHF 112.09
49+
CHF 110.72
74+
CHF 109.35
99+
CHF 102.52
199+
CHF 101.15
249+
CHF 99.78
499+
CHF 98.42
999+
CHF 95.68
Couldn't load pickup availability
Description
Description
|
RHP NP K Series Plummer / Pillow Housings: Supplied with a sealed full width taper bore bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing has a taper bore to accommodate fitting with a taper sleeve (not supplied) which is tightened using a lock nut to secure to the shaft after installation, the locknut is subsequently secured with the tab washer. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 49.21mm = 1.937 (1-15/16) inch
- Style:
- NP
- Bolt Hole Centres:
- 6.398-7.028 inch
Technical
Technical
| L | 8.641 inch |
|---|---|
| H | 2.5 inch |
| H1 | 0.976 inch |
| H2 | 5.098 inch |
| J max | 7.028 inch |
| J min | 6.398 inch |
| G | 0.625 inch |
| A | 2.362 inch |
| A1 | 1.555 |
| B5 | 1.772 |
| d4 | 2.953 inch |
| Dynamic load Cr | 43500 N |
| Static load Cor | 29200 N |
| Rec max speed | 3100 rpm |
| Weight | 4 kg |
| Insert | <a href="advanced_search_result.php?keywords=1055K+insonly">1055K Click Here</a> |
| Casting group | 9 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
