SKU: NP3/4EC-RHP

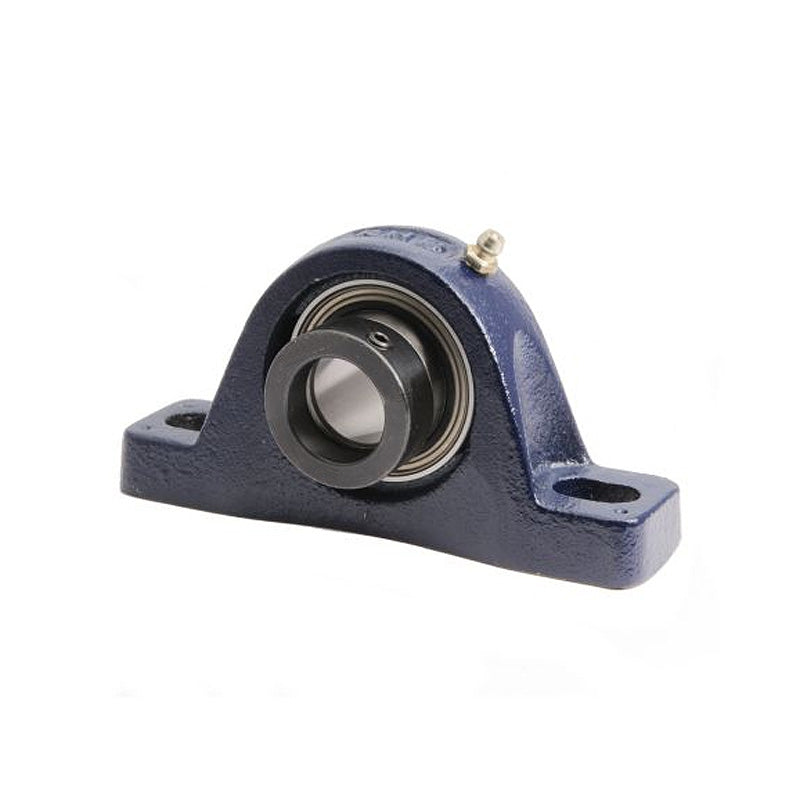

RHP NP3/4EC Two Bolt Cast Iron Pillow Block and 3/4 Bore Eccentric Collar Flat Back Insert
RHP NP3/4EC Two Bolt Cast Iron Pillow Block and 3/4 Bore Eccentric Collar Flat Back Insert
Regular price
CHF 41.08
ex VAT
Regular price
Sale price
CHF 41.08
ex VAT
In stock
Price Break
10+
CHF 36.56
19+
CHF 34.51
29+
CHF 34.10
39+
CHF 33.69
49+
CHF 33.27
74+
CHF 32.86
99+
CHF 30.81
199+
CHF 30.40
249+
CHF 29.99
499+
CHF 29.58
999+
CHF 28.76
Couldn't load pickup availability
Description
Description
|
RHP NP-EC Series Plummer / Pillow Housings: Supplied with a flat back sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar with a grub screw to facilitate securing the bearing to the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 19.05mm = 0.75 (3/4) inch
- Style:
- NP
- Bolt Hole Centres:
- 3.484-3.957 inch

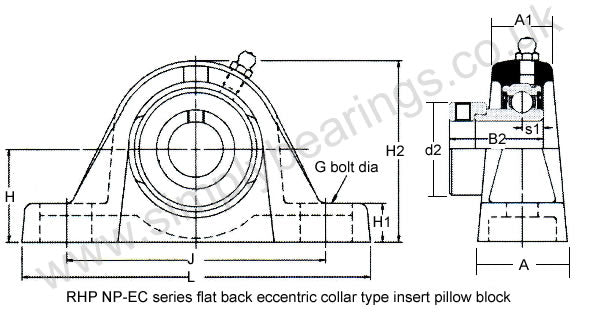

Technical
Technical
| Bore | 3/4 inch |
|---|---|
| L | 5 inch |
| H | 1.311 inch |
| H1 | 0.551 inch |
| H2 | 2.567 inch |
| J max | 3.957 inch |
| J min | 3.484 inch |
| G | 0.375 inch |
| A | 1.28 inch |
| A1 | 0.886 inch |
| B2 | 1.217 inch |
| s1 | 0.298 inch |
| d2 | 1.311 inch |
| Dynamic load Cr | 12800 N |
| Static load Cor | 6650 N |
| Rec max speed | 6700 rpm |
| Weight | 0.6 kg |
| Insert | <a href="advanced_search_result.php?keywords=1220-3/4ECG+insonly">1220-3/4ECG Click Here</a> |
| Casting group | 2 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
