SKU: NP50-RHP

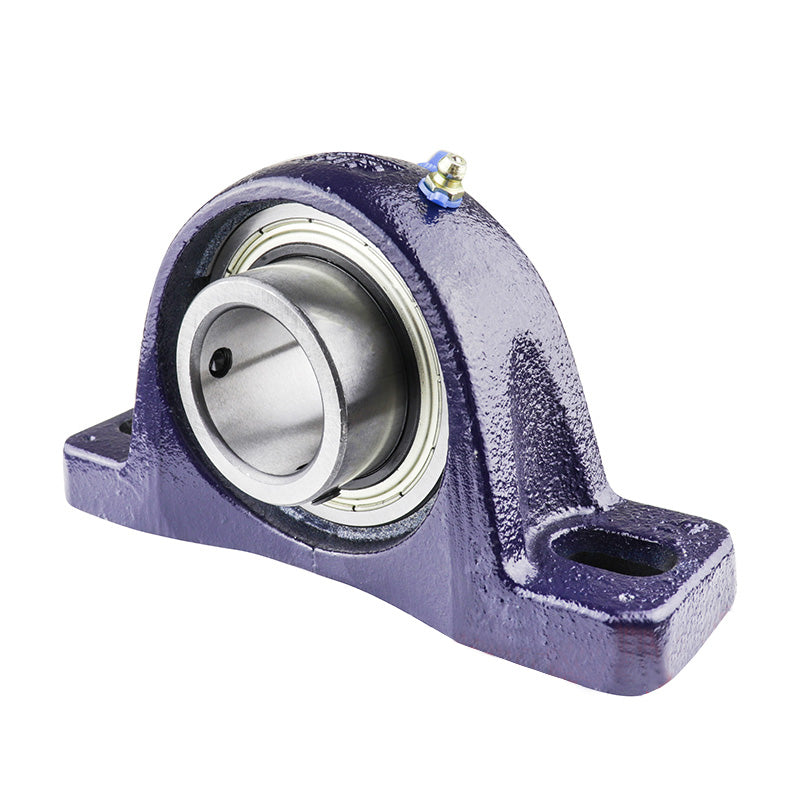

RHP NP50 Two Bolt Cast Iron Pillow Block and 50mm Bore Grub Screw Full Width Insert

RHP NP50 Two Bolt Cast Iron Pillow Block and 50mm Bore Grub Screw Full Width Insert
Regular price CHF 86.00 ex VAT
Regular price Sale price CHF 86.00 ex VAT
Sale Sold out

In stock

Price Break
10+ CHF 68.35
20+ CHF 64.51
30+ CHF 63.74
40+ CHF 62.97
50+ CHF 62.21
75+ CHF 61.44
100+ CHF 57.60
200+ CHF 56.83
250+ CHF 56.06
500+ CHF 55.29
1000+ CHF 53.76
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 50mm
L 206mm
H 57.2mm
H1 21mm
H2 115.2mm
J max 163mm
J min 154mm
G 16mm
A 55mm
A1 36mm
B 51.59mm
s 19.1mm
d1 62.2mm
Dynamic load Cr 35000 N
Static load Cor 23200 N
Rec max speed 3400 rpm
Weight 3.2 kg
Insert <a href="advanced_search_result.php?keywords=1050-50G+insonly">1050-50G Click Here</a>
Casting group 8
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
