SKU: NP55-RHP

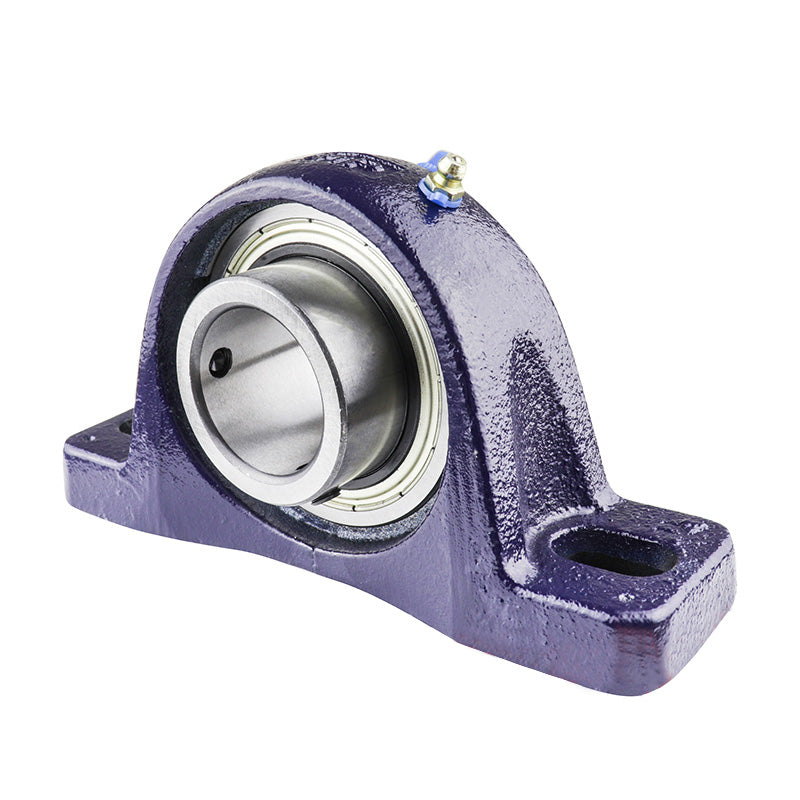

RHP NP55 Two Bolt Cast Iron Pillow Block and 55mm Bore Grub Screw Full Width Insert

RHP NP55 Two Bolt Cast Iron Pillow Block and 55mm Bore Grub Screw Full Width Insert
Regular price CHF 116.00 ex VAT
Regular price Sale price CHF 116.00 ex VAT
Sale Sold out

In stock

Price Break
10+ CHF 92.03
20+ CHF 86.86
30+ CHF 85.83
40+ CHF 84.79
50+ CHF 83.76
75+ CHF 82.72
100+ CHF 77.55
200+ CHF 76.52
250+ CHF 75.49
500+ CHF 74.45
1000+ CHF 72.38
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 55mm
L 219.5mm
H 63.5mm
H1 24.8mm
H2 129.5mm
J max 178.5mm
J min 162.5mm
G 16mm
A 60mm
A1 39.5mm
B 55.55mm
s 22.28mm
d1 68.81mm
Dynamic load Cr 43500 N
Static load Cor 29200 N
Rec max speed 3100 rpm
Weight 4 kg
Insert <a href="advanced_search_result.php?keywords=1055-55G+insonly">1055-55G Click Here</a>
Casting group 9
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
