SKU: NP70-RHP

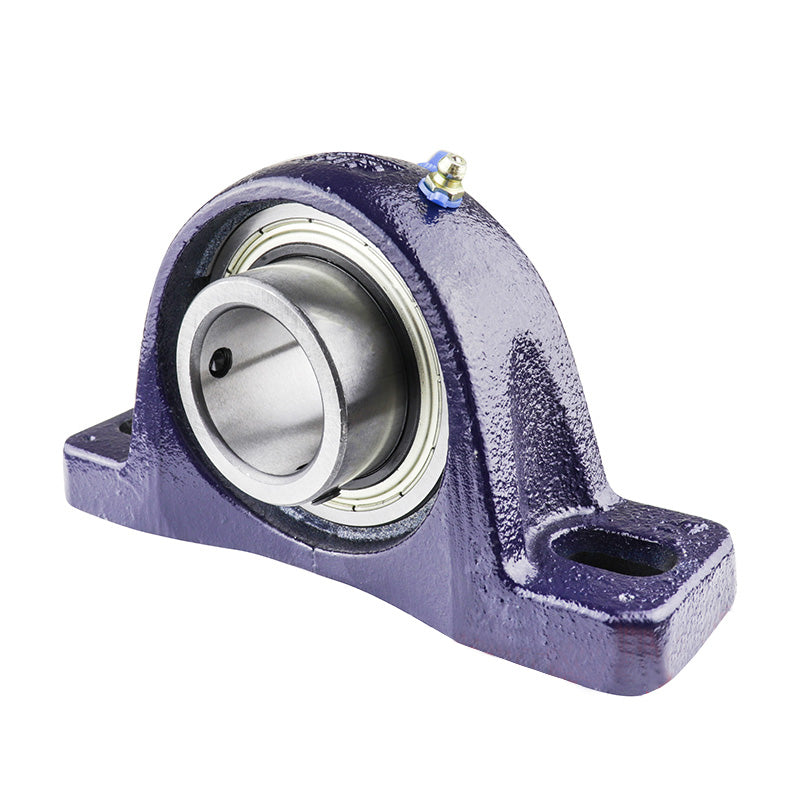

RHP NP70 Two Bolt Cast Iron Pillow Block and 70mm Bore Grub Screw Full Width Insert

RHP NP70 Two Bolt Cast Iron Pillow Block and 70mm Bore Grub Screw Full Width Insert
Regular price CHF 237.00 ex VAT
Regular price Sale price CHF 237.00 ex VAT
Sale Sold out

In stock

Price Break
10+ CHF 188.39
20+ CHF 177.80
30+ CHF 175.69
40+ CHF 173.57
50+ CHF 171.45
75+ CHF 169.34
100+ CHF 158.75
200+ CHF 156.64
250+ CHF 154.52
500+ CHF 152.40
1000+ CHF 148.17
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 70mm
L 266mm
H 79.4mm
H1 28mm
H2 156mm
J max 220mm
J min 200mm
G 24mm
A 72mm
A1 47mm
B 74.63mm
s 30.23mm
d1 87mm
Dynamic load Cr 61000 N
Static load Cor 45000 N
Rec max speed 2450 rpm
Weight 8 kg
Insert <a href="advanced_search_result.php?keywords=1070-70G+insonly">1070-70G Click Here</a>
Casting group 11
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
