SKU: NTB.90120

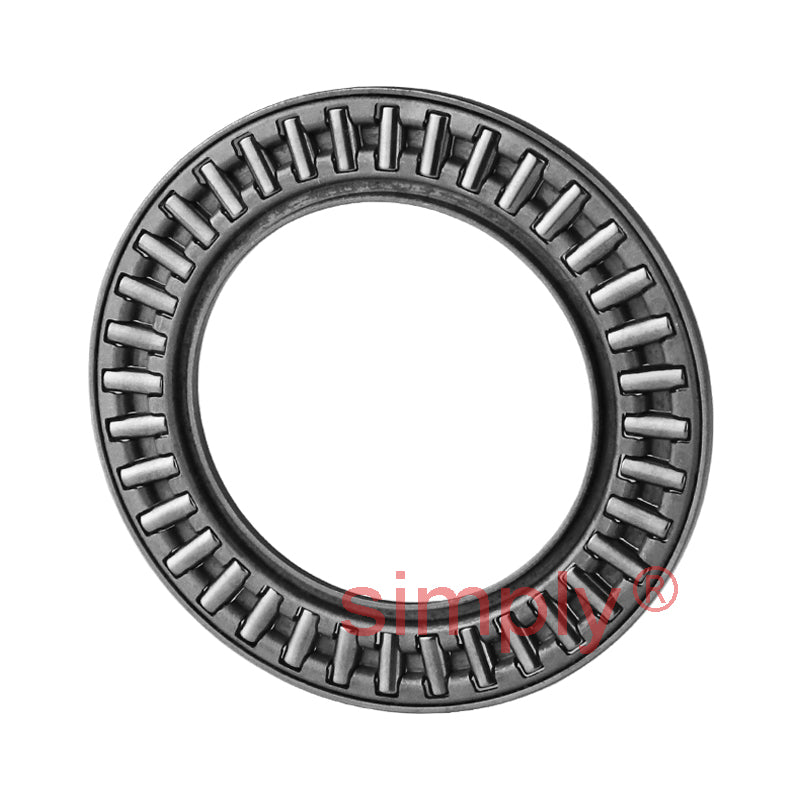

NTB90120 Needle Roller Thrust Bearing Cage Only 90x120x4mm
NTB90120 Needle Roller Thrust Bearing Cage Only 90x120x4mm
Regular price
CHF 9.00
ex VAT
Regular price
Sale price
CHF 9.00
ex VAT
Equivalent to: AXK90120 FNTA90120
In stock
Price Break
10+
CHF 6.90
20+
CHF 6.51
30+
CHF 6.43
40+
CHF 6.36
50+
CHF 6.28
75+
CHF 6.20
100+
CHF 5.81
200+
CHF 5.74
250+
CHF 5.66
500+
CHF 5.58
1000+
CHF 5.43
Description
Description
|
NTB Series Needle Roller Thrust Bearings: Consisting of precisely made cages and needle rollers, these bearings have high rigidity and high load capacities. When bearing mounting surfaces of a machine are heat-treated and finished by grinding as raceways, thrust bearings can be used without raceway rings allowing the machine to be made more compact. Suitable in applications where there is a requirement for high accuracy at high speeds and under varying heavy loads, such as driving mechanisms for automobiles, machine tools and high-pressure pumps. Benefits: Cost effective, can be used in small spaces, high load bearing. |
Equivalent: AXK90120 FNTA90120
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 90mm
- Outside Diameter:
- 120mm
- Width:
- 4mm
Technical
Technical
| D | 120mm |
|---|---|
| Dw | 4mm |
| d | 90mm |
| Dynamic Load Cor | 64500 N |
| Static Load Cr | 394000 N |
| Weight | 0.092 kg |
