SKU: NU1030ML/C3-SKF

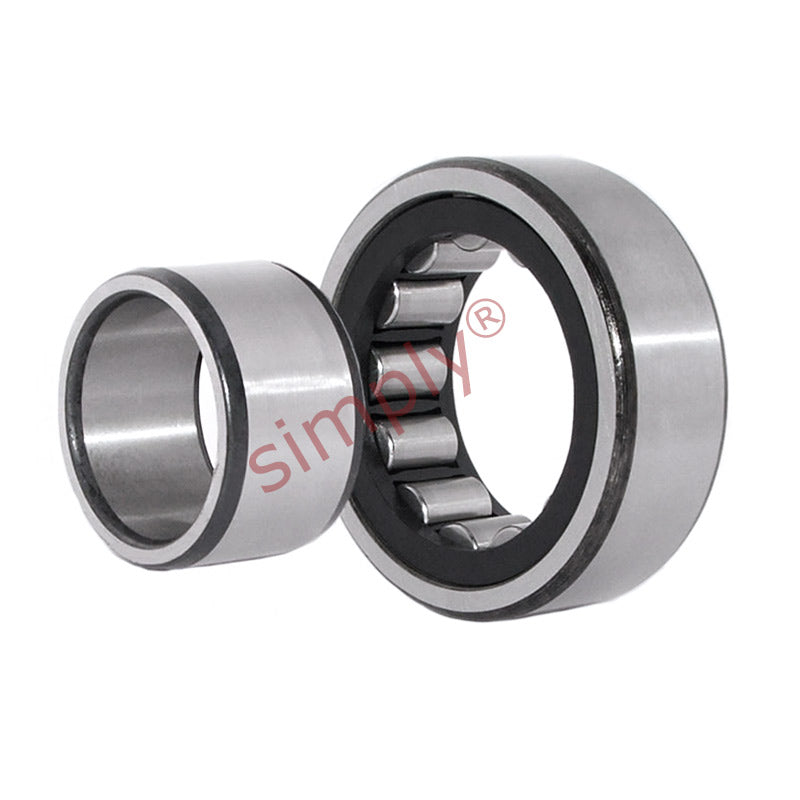

SKF NU1030MLC3 Single Row Cylindrical Roller Bearing with Brass Cage 150x225x35mm
SKF NU1030MLC3 Single Row Cylindrical Roller Bearing with Brass Cage 150x225x35mm
Regular price
CHF 622.05
ex VAT
Regular price
Sale price
CHF 622.05
ex VAT
In stock
Price Break
10+
CHF 553.62
19+
CHF 522.52
29+
CHF 516.30
39+
CHF 510.08
49+
CHF 503.86
74+
CHF 497.64
99+
CHF 466.54
199+
CHF 460.32
249+
CHF 454.10
499+
CHF 447.88
999+
CHF 435.44
Couldn't load pickup availability
Description
Description
|
SKF NU Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has no flanges permitting the ease of assembly and allowing axial movement in either direction. Benefits: Axial displacement tolerant, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 150mm
- Outside Diameter:
- 225mm
- Width:
- 35mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 150mm |
|---|---|
| D | 225mm |
| B | 35mm |
| Dynamic load C | 194 kN |
| Static load Co | 275 kN |
| Fatigue load limit Pu | 30 kN |
| Reference speed | 3200 rpm |
| Limiting speed | 5000 rpm |
| Weight | 4.9 kg |
| Alt cage | M |
| D1 | 198mm |
| F,E | 169.5mm |
| r1r2 min | 2.1mm |
| r3r4 min | 1.5mm |
| S | 4.9mm |
| da min | 157mm |
| da max | 167mm |
| db | 173mm |
| Da max | 215mm |
| ra max | 2mm |
| rb max | 1.5mm |
| kr | 0.1 |
