SKU: NU207ECJ-SKF

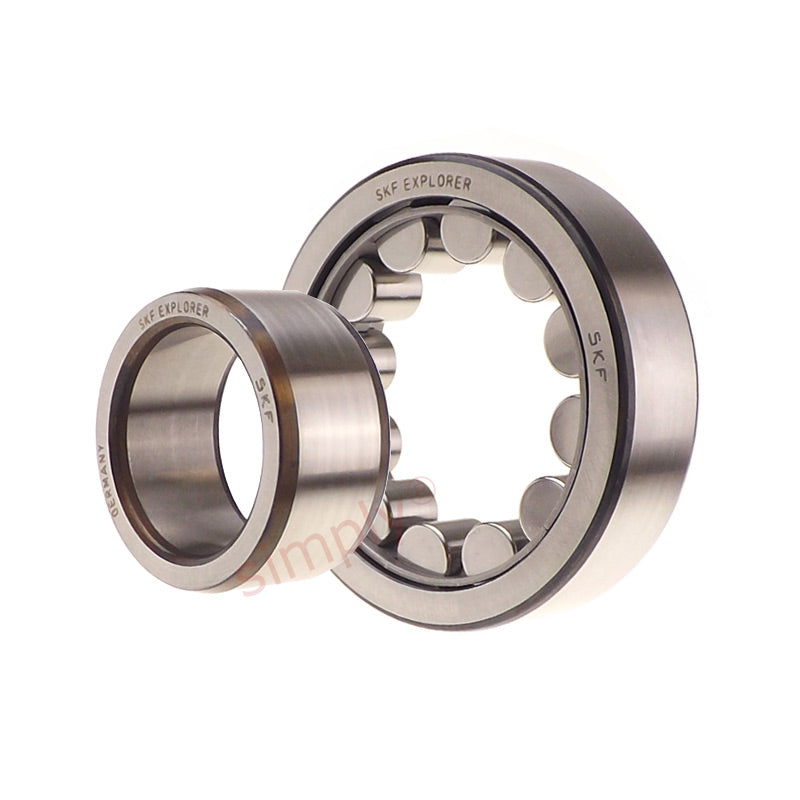

SKF NU207ECJ Steel Cage Single Row Cylindrical Roller Bearing 35x72x17mm
SKF NU207ECJ Steel Cage Single Row Cylindrical Roller Bearing 35x72x17mm
Regular price
CHF 58.00
ex VAT
Regular price
Sale price
CHF 58.00
ex VAT
In stock
Price Break
10+
CHF 45.71
19+
CHF 43.14
29+
CHF 42.63
39+
CHF 42.11
49+
CHF 41.60
74+
CHF 41.09
99+
CHF 38.52
199+
CHF 38.00
249+
CHF 37.49
499+
CHF 36.98
999+
CHF 35.95
Description
Description
|
SKF NU Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has no flanges permitting the ease of assembly and allowing axial movement in either direction. Benefits: Axial displacement tolerant, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 72mm
- Width:
- 17mm
- Clearance:
- * Standard
Technical
Technical
| d | 35mm |
|---|---|
| D | 72mm |
| D1 | 60.7mm |
| B | 17mm |
| F | 44mm |
| Dynamic load | 56 kN |
| Static load | 48 kN |
| Fatigue load | 6.1 kN |
| Reference speed | 11000rpm |
| Limiting speed | 12000rpm |
| r1,2min | 1.1mm |
| r3,4min | 0.6mm |
| s | 1.3mm |
| Weight | 0.31kg |
