SKU: NU211ECJ-SKF

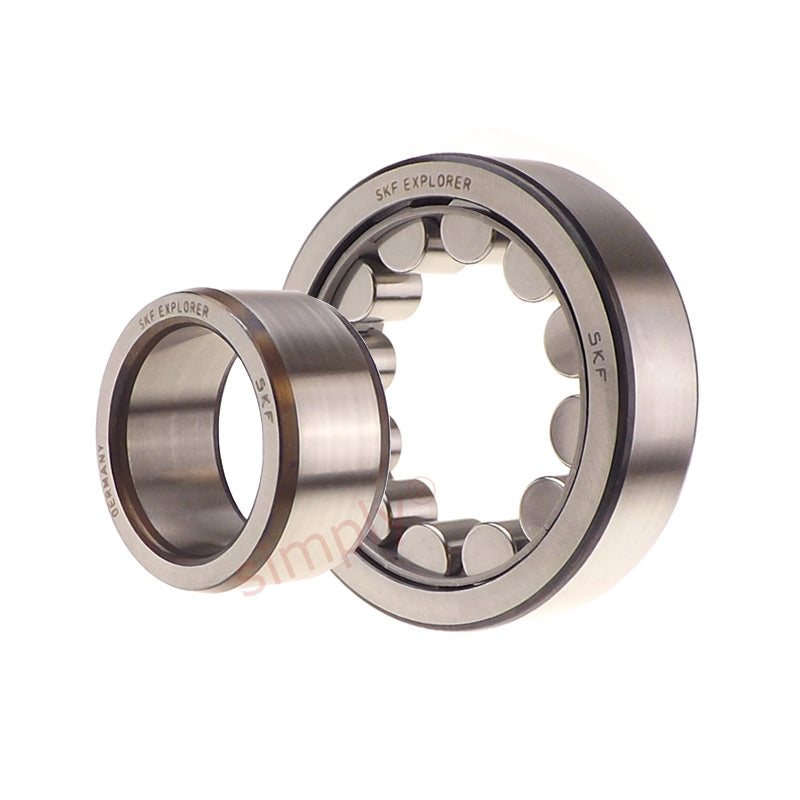

SKF NU211ECJ Steel Cage Single Row Cylindrical Roller Bearing 55x100x21mm
SKF NU211ECJ Steel Cage Single Row Cylindrical Roller Bearing 55x100x21mm
Regular price
CHF 81.00
ex VAT
Regular price
Sale price
CHF 81.00
ex VAT
In stock
Price Break
10+
CHF 64.33
19+
CHF 60.72
29+
CHF 59.99
39+
CHF 59.27
49+
CHF 58.55
74+
CHF 57.82
99+
CHF 54.21
199+
CHF 53.49
249+
CHF 52.76
499+
CHF 52.04
999+
CHF 50.60
Description
Description
|
SKF NU Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has no flanges permitting the ease of assembly and allowing axial movement in either direction. Benefits: Axial displacement tolerant, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 100mm
- Width:
- 21mm
- Clearance:
- * Standard
Technical
Technical
| d | 55mm |
|---|---|
| D | 100mm |
| D1 | 86.3mm |
| B | 21mm |
| F | 66mm |
| Dynamic load | 96.5 kN |
| Static load | 95 kN |
| Fatigue load | 12.2 kN |
| Reference speed | 7500rpm |
| Limiting speed | 8000rpm |
| r1,2min | 1.2mm |
| r3,4min | 1.5mm |
| s | 1mm |
| Weight | 0.69kg |
