SKU: NU212ECJ/C3-SKF

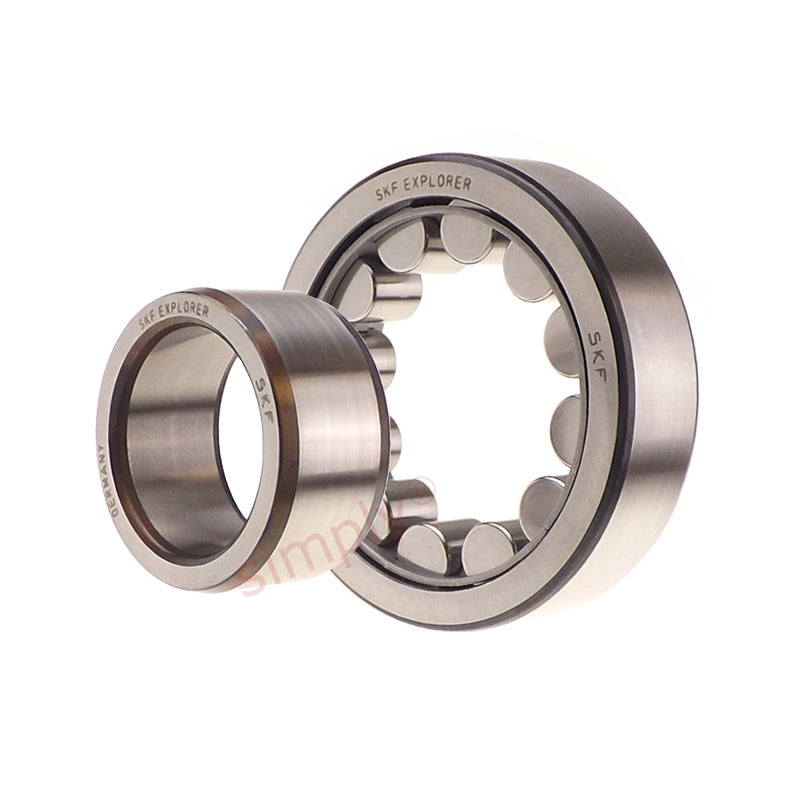

SKF NU212ECJ/C3 Steel Cage Single Row Cylindrical Roller Bearing 60x110x22mm
SKF NU212ECJ/C3 Steel Cage Single Row Cylindrical Roller Bearing 60x110x22mm
Regular price
CHF 96.00
ex VAT
Regular price
Sale price
CHF 96.00
ex VAT
In stock
Price Break
10+
CHF 76.17
19+
CHF 71.89
29+
CHF 71.04
39+
CHF 70.18
49+
CHF 69.33
74+
CHF 68.47
99+
CHF 64.19
199+
CHF 63.33
249+
CHF 62.48
499+
CHF 61.62
999+
CHF 59.91
Description
Description
|
SKF NU Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has no flanges permitting the ease of assembly and allowing axial movement in either direction. Benefits: Axial displacement tolerant, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 110mm
- Width:
- 22mm
- Clearance:
- C3
Technical
Technical
| d | 60mm |
|---|---|
| D | 110mm |
| D1 | 95.7mm |
| B | 22mm |
| F | 72mm |
| Dynamic load | 108 kN |
| Static load | 102 kN |
| Fatigue load | 13.4 kN |
| Reference speed | 6700rpm |
| Limiting speed | 7500rpm |
| r1,2min | 1.5mm |
| r3,4min | 1.5mm |
| s | 1.4mm |
| Weight | 0.83kg |
