SKU: NU213-CDX

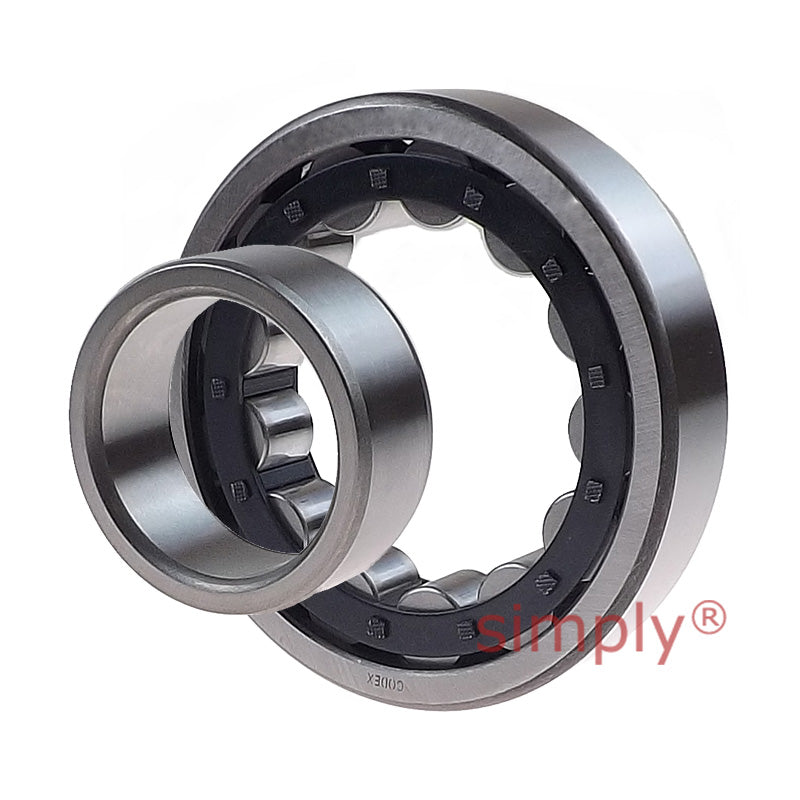

Codex NU213 Single Row Cylindrical Roller Bearing 65x120x23mm
Codex NU213 Single Row Cylindrical Roller Bearing 65x120x23mm
Regular price
CHF 76.00
ex VAT
Regular price
Sale price
CHF 76.00
ex VAT
In stock
Price Break
10+
CHF 59.92
19+
CHF 56.55
29+
CHF 55.88
39+
CHF 55.21
49+
CHF 54.53
74+
CHF 53.86
99+
CHF 50.50
199+
CHF 49.82
249+
CHF 49.15
499+
CHF 48.48
999+
CHF 47.13
Description
Description
|
NU Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has no flanges permitting the ease of assembly and allowing axial movement in either direction. Benefits: Axial displacement tolerant, ease of assembly and fitting |
- Brand / Quality:
- Codex - Good Quality
- Inside Diameter:
- 65mm
- Outside Diameter:
- 120mm
- Width:
- 23mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 65mm |
|---|---|
| D | 120mm |
| B | 23mm |
| Dynamic load C | 122 kN |
| Static load Co | 118 kN |
| Fatigue load limit Pu | 15.6 kN |
| Reference speed | 6300 rpm |
| Limiting speed | 6700 rpm |
| Weight | 1.03 kg |
| Cage options | J.M.ML |
| d1 | 84.4mm |
| D1 | 104mm |
| F, E | 78.5mm |
| r1r2 min | 1.5mm |
| r3r4 min | 1.5mm |
| s | 1.4mm |
| da min | 74mm |
| da max | 76mm |
| db min | 81mm |
| Da max | 111mm |
| ra max | 1.5mm |
| rb max | 1.5mm |
| kr | 0.15 |
| Angle ring | HJ213EC |
| Angle ring weight | 0.12kg |
| B1 | 6mm |
| B2 | 10mm |
