SKU: NU215-CDX

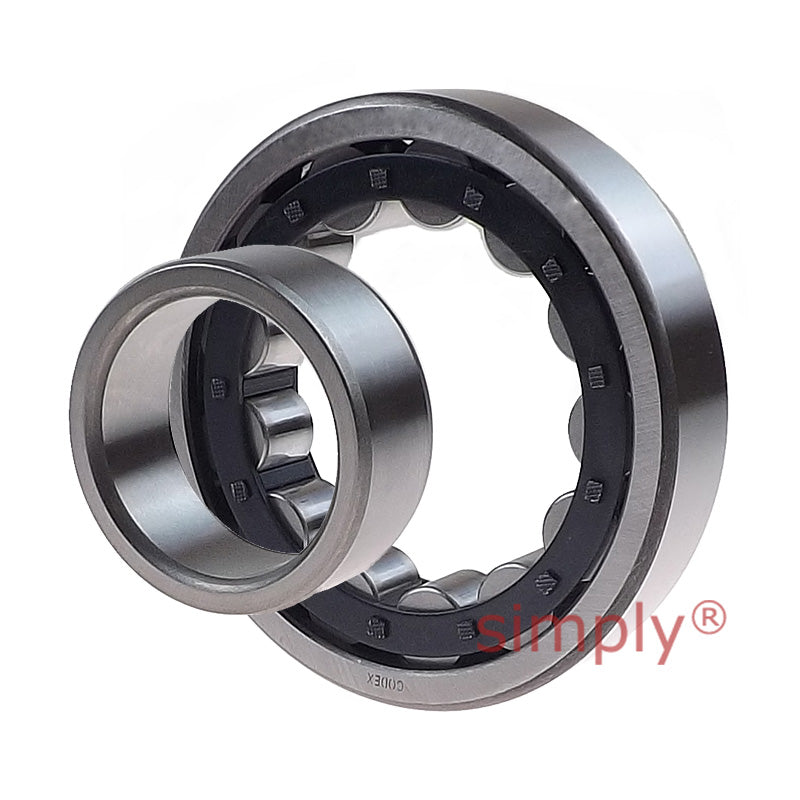

Codex NU215 Single Row Cylindrical Roller Bearing 75x130x25mm
Codex NU215 Single Row Cylindrical Roller Bearing 75x130x25mm
Regular price
CHF 89.50
ex VAT
Regular price
Sale price
CHF 89.50
ex VAT
In stock
Price Break
10+
CHF 79.66
19+
CHF 75.18
29+
CHF 74.29
39+
CHF 73.39
49+
CHF 72.50
74+
CHF 71.60
99+
CHF 67.13
199+
CHF 66.23
249+
CHF 65.34
499+
CHF 64.44
999+
CHF 62.65
Couldn't load pickup availability
Description
Description
|
NU Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has no flanges permitting the ease of assembly and allowing axial movement in either direction. Benefits: Axial displacement tolerant, ease of assembly and fitting |
- Brand / Quality:
- Codex - Good Quality
- Inside Diameter:
- 75mm
- Outside Diameter:
- 130mm
- Width:
- 25mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 75mm |
|---|---|
| D | 130mm |
| B | 25mm |
| Dynamic load C | 150 kN |
| Static load Co | 156 kN |
| Fatigue load limit Pu | 20.4 kN |
| Reference speed | 5600 rpm |
| Limiting speed | 6000 rpm |
| Weight | 1.25 kg |
| Cage options | J.M.ML |
| d1 | 94.3mm |
| D1 | 114mm |
| F, E | 88.5mm |
| r1r2 min | 1.5mm |
| r3r4 min | 1.5mm |
| s | 1.2mm |
| da min | 84mm |
| da max | 86mm |
| db min | 91mm |
| Da max | 121mm |
| ra max | 1.5mm |
| rb max | 1.5mm |
| kr | 0.15 |
| Angle ring | HJ215EC |
| Angle ring weight | 0.16kg |
| B1 | 7mm |
| B2 | 11mm |
