SKU: NU216-CDX

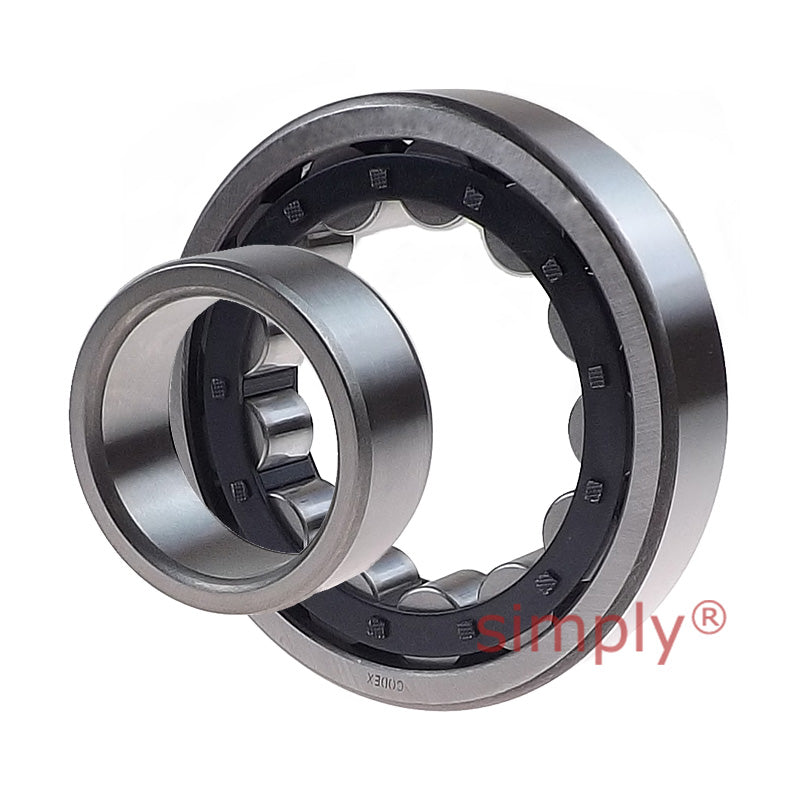

Codex NU216 Single Row Cylindrical Roller Bearing 80x140x26mm
Codex NU216 Single Row Cylindrical Roller Bearing 80x140x26mm
Regular price
CHF 103.00
ex VAT
Regular price
Sale price
CHF 103.00
ex VAT
In stock
Price Break
10+
CHF 81.59
19+
CHF 77.00
29+
CHF 76.09
39+
CHF 75.17
49+
CHF 74.25
74+
CHF 73.34
99+
CHF 68.75
199+
CHF 67.84
249+
CHF 66.92
499+
CHF 66.00
999+
CHF 64.17
Description
Description
|
NU Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has no flanges permitting the ease of assembly and allowing axial movement in either direction. Benefits: Axial displacement tolerant, ease of assembly and fitting |
- Brand / Quality:
- Codex - Good Quality
- Inside Diameter:
- 80mm
- Outside Diameter:
- 140mm
- Width:
- 26mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 80mm |
|---|---|
| D | 140mm |
| B | 26mm |
| Dynamic load C | 160 kN |
| Static load Co | 166 kN |
| Fatigue load limit Pu | 21.2 kN |
| Reference speed | 5300 rpm |
| Limiting speed | 5600 rpm |
| Weight | 1.55 kg |
| Cage options | J.M.ML |
| d1 | 101mm |
| D1 | 123mm |
| F, E | 95.3mm |
| r1r2 min | 2mm |
| r3r4 min | 2mm |
| s | 1.4mm |
| da min | 91mm |
| da max | 93mm |
| db min | 98mm |
| Da max | 129mm |
| ra max | 2mm |
| rb max | 2mm |
| kr | 0.15 |
| Angle ring | HJ216EC |
| Angle ring weight | 0.21kg |
| B1 | 8mm |
| B2 | 12.5mm |
