SKU: NU219-EU

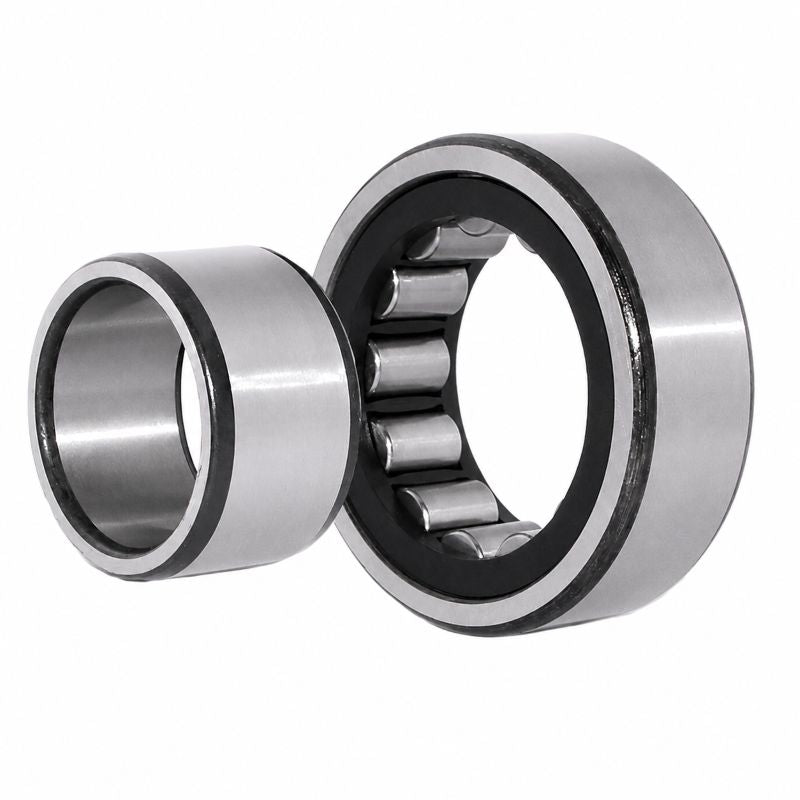

NU219 Budget Single Row Cylindrical Roller Bearing 95x170x32mm
NU219 Budget Single Row Cylindrical Roller Bearing 95x170x32mm
Regular price
CHF 151.00
ex VAT
Regular price
Sale price
CHF 151.00
ex VAT
In stock
Price Break
10+
CHF 119.84
19+
CHF 113.10
29+
CHF 111.76
39+
CHF 110.41
49+
CHF 109.06
74+
CHF 107.72
99+
CHF 100.98
199+
CHF 99.64
249+
CHF 98.29
499+
CHF 96.95
999+
CHF 94.25
Description
Description
|
NU Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has no flanges permitting the ease of assembly and allowing axial movement in either direction. Benefits: Axial displacement tolerant, ease of assembly and fitting |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 95mm
- Outside Diameter:
- 170mm
- Width:
- 32mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 95mm |
|---|---|
| D | 170mm |
| B | 32mm |
| Dynamic load C | 255 kN |
| Static load Co | 265 kN |
| Fatigue load limit Pu | 32.5 kN |
| Reference speed | 4300 rpm |
| Limiting speed | 4800 rpm |
| Weight | 2.85 kg |
| Cage options | J.M.ML |
| d1 | 120mm |
| D1 | 149mm |
| F, E | 112.5mm |
| r1r2 min | 2.1mm |
| r3r4 min | 2.1mm |
| s | 1.7mm |
| da min | 107mm |
| da max | 110mm |
| db min | 115mm |
| Da max | 158mm |
| ra max | 2mm |
| rb max | 2mm |
| kr | 0.15 |
| Angle ring | HJ219EC |
| Angle ring weight | 0.33kg |
| B1 | 9mm |
| B2 | 14mm |
