SKU: NU2206.W.MB

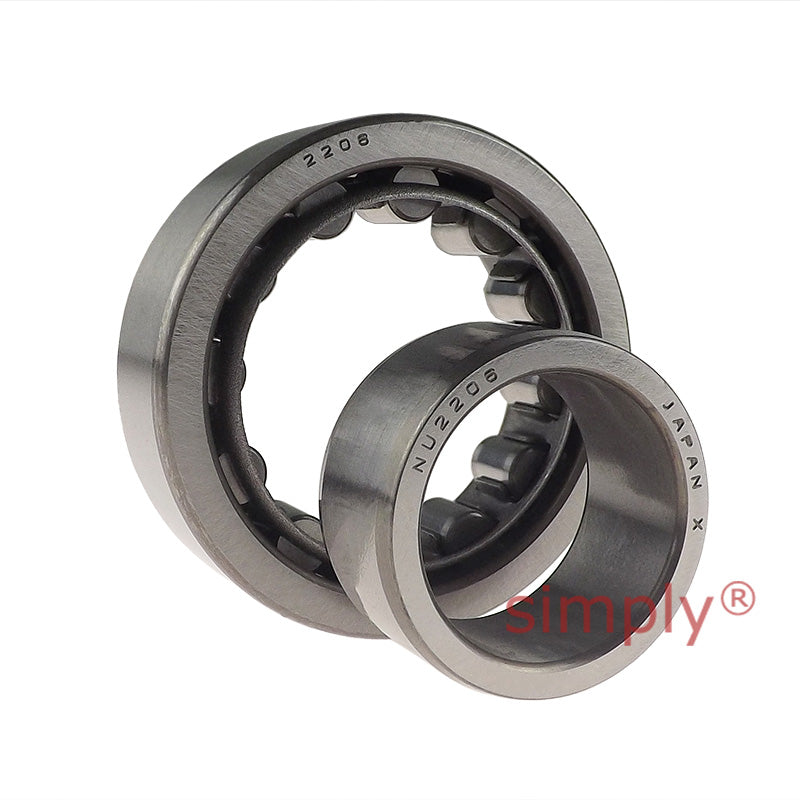

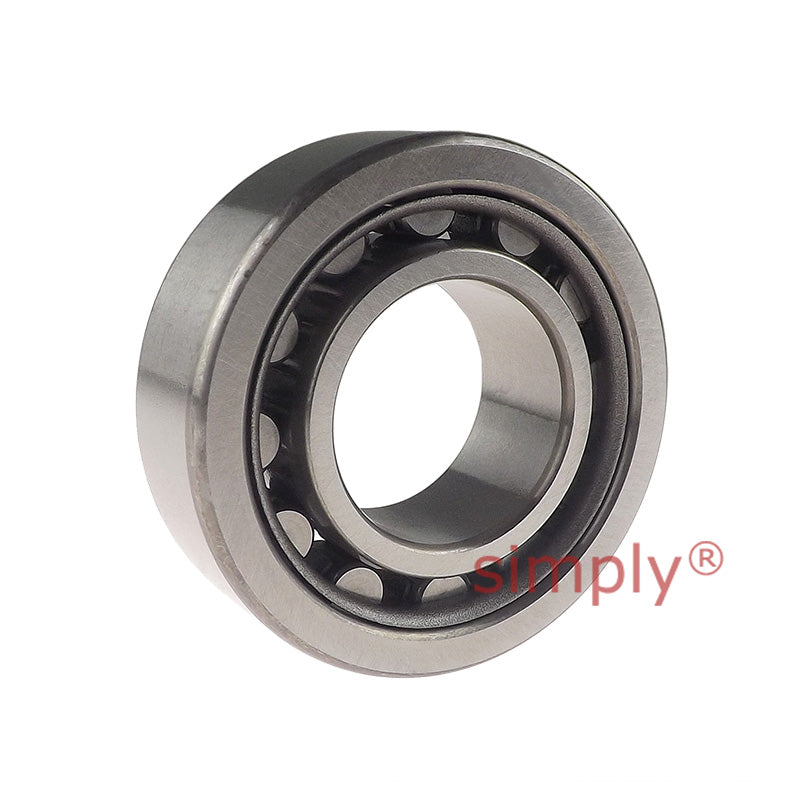

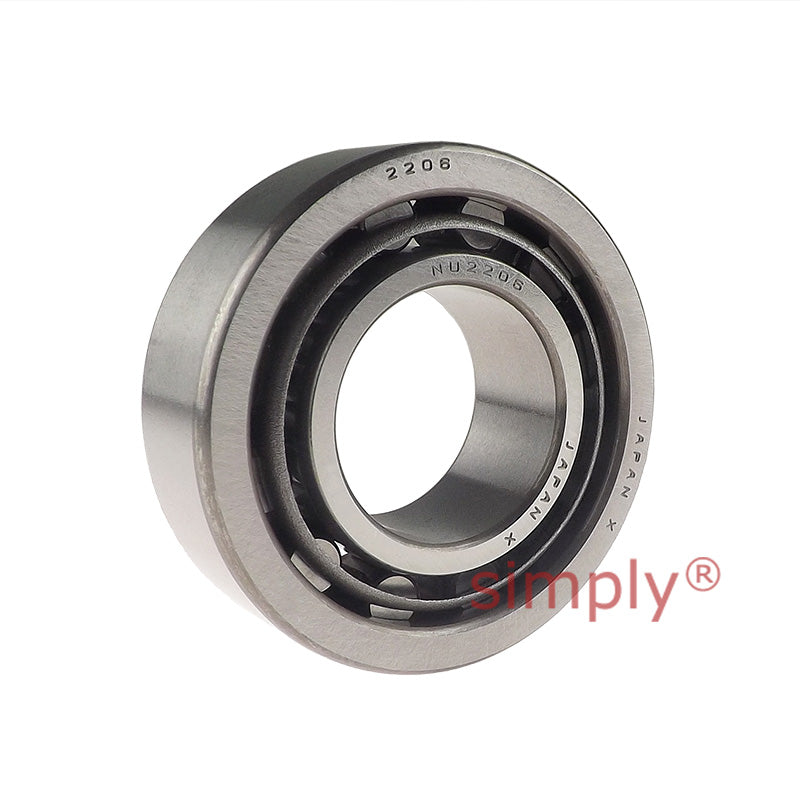

NU2206 Steel Cage Single Row Cylindrical Roller Bearing 30x62x20mm
NU2206 Steel Cage Single Row Cylindrical Roller Bearing 30x62x20mm
Regular price
CHF 39.00
ex VAT
Regular price
Sale price
CHF 39.00
ex VAT
Low stock
Price Break
10+
CHF 30.50
19+
CHF 28.79
29+
CHF 28.45
39+
CHF 28.10
49+
CHF 27.76
74+
CHF 27.42
99+
CHF 25.70
199+
CHF 25.36
249+
CHF 25.02
499+
CHF 24.68
999+
CHF 23.99
Description
Description
|
NU Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has no flanges permitting the ease of assembly and allowing axial movement in either direction. Benefits: Axial displacement tolerant, ease of assembly and fitting |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 62mm
- Width:
- 20mm
- Seals / Shields:
- None
- Clearance:
- *Standard
Technical
Technical
| d | 30mm |
|---|---|
| D | 62mm |
| B | 20mm |
| Dynamic load C | 55 kN |
| Static load Co | 49 kN |
| Fatigue load limit Pu | 6.1 kN |
| Reference speed | 13000 rpm |
| Limiting speed | 14000 rpm |
| Weight | 0.26 kg |
| Cage options | J.ML |
| D1 | 52.5mm |
| F, E | 37.5mm |
| r1r2 min | 1mm |
| r3r4 min | 0.6mm |
| s | 1.8mm |
| da min | 34mm |
| da max | 36mm |
| db min | 39mm |
| Da max | 57mm |
| ra max | 1mm |
| rb max | 0.6mm |
| kr | 0.2 |
