SKU: NU2208-CDX

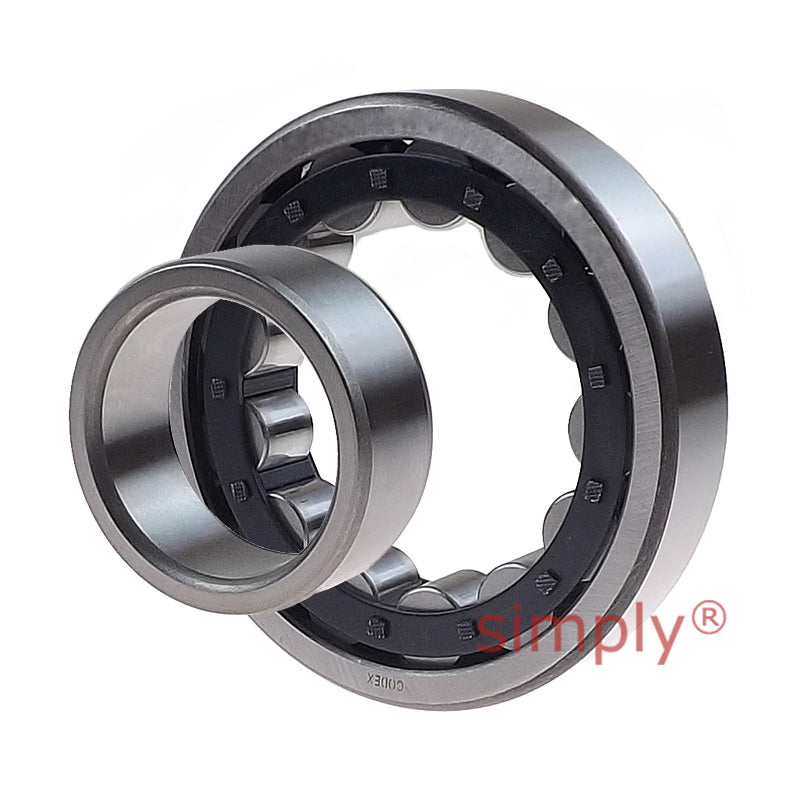

Codex NU2208 Single Row Cylindrical Roller Bearing 40x80x23mm
Codex NU2208 Single Row Cylindrical Roller Bearing 40x80x23mm
Regular price
CHF 48.00
ex VAT
Regular price
Sale price
CHF 48.00
ex VAT
In stock
Price Break
10+
CHF 37.69
19+
CHF 35.57
29+
CHF 35.15
39+
CHF 34.73
49+
CHF 34.30
74+
CHF 33.88
99+
CHF 31.76
199+
CHF 31.34
249+
CHF 30.92
499+
CHF 30.49
999+
CHF 29.65
Description
Description
|
NU Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has no flanges permitting the ease of assembly and allowing axial movement in either direction. Benefits: Axial displacement tolerant, ease of assembly and fitting |
- Brand / Quality:
- Codex - Good Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 80mm
- Width:
- 23mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 40mm |
|---|---|
| D | 80mm |
| B | 23mm |
| Dynamic load C | 81.5 kN |
| Static load Co | 75 kN |
| Fatigue load limit Pu | 9.65 kN |
| Reference speed | 9500 rpm |
| Limiting speed | 11000 rpm |
| Weight | 0.49 kg |
| Cage options | J.ML |
| d1 | 54mm |
| D1 | 67.9mm |
| F, E | 49.5mm |
| r1r2 min | 1.1mm |
| r3r4 min | 1.1mm |
| s | 1.9mm |
| da min | 47mm |
| da max | 48mm |
| db min | 51mm |
| Da max | 73mm |
| ra max | 1mm |
| rb max | 1mm |
| kr | 0.2 |
| Angle ring | HJ2208EC |
| Angle ring weight | 0.048kg |
| B1 | 5mm |
| B2 | 9mm |
