SKU: NU220ECP-SKF

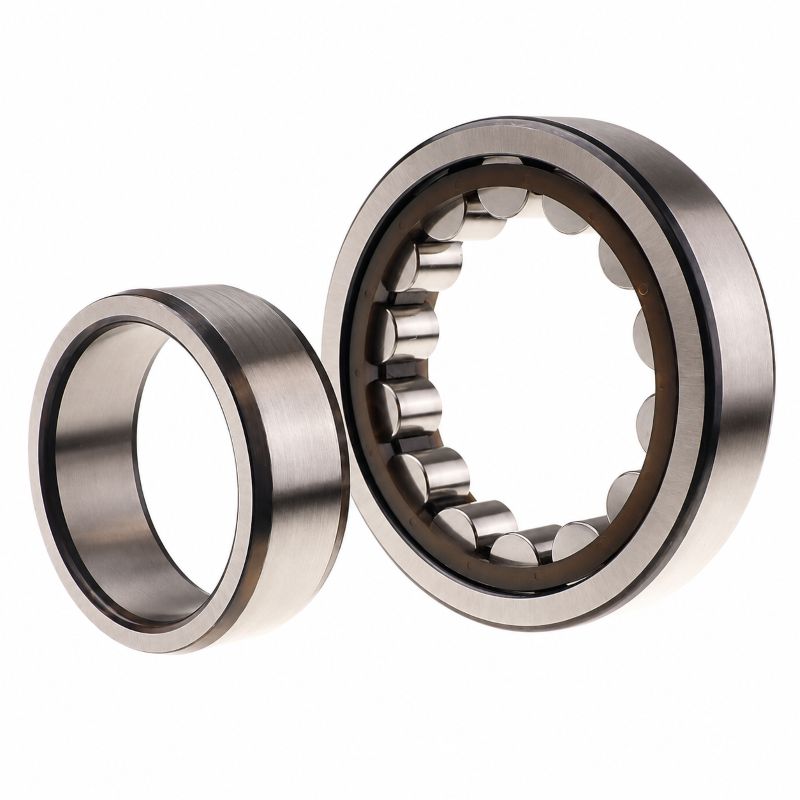

SKF NU220ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 100x180x34mm
SKF NU220ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 100x180x34mm
Regular price
CHF 232.00
ex VAT
Regular price
Sale price
CHF 232.00
ex VAT
In stock
Price Break
10+
CHF 184.26
19+
CHF 173.90
29+
CHF 171.83
39+
CHF 169.76
49+
CHF 167.69
74+
CHF 165.62
99+
CHF 155.27
199+
CHF 153.20
249+
CHF 151.13
499+
CHF 149.06
999+
CHF 144.92
Description
Description
|
SKF NU Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has no flanges permitting the ease of assembly and allowing axial movement in either direction. Benefits: Axial displacement tolerant, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 100mm
- Outside Diameter:
- 180mm
- Width:
- 34mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 100mm |
|---|---|
| D | 180mm |
| B | 34mm |
| Dynamic load C | 285 kN |
| Static load Co | 305 kN |
| Fatigue load limit Pu | 36.5 kN |
| Reference speed | 4000 rpm |
| Limiting speed | 4500 rpm |
| Weight | 3.4 kg |
| Alt cage | J.M.ML |
| d1 | 127mm |
| D1 | 157mm |
| F,E | 119mm |
| r1r2 min | 2.1mm |
| r3r4 min | 2.1mm |
| S | 1.7mm |
| da min | 112mm |
| da max | 116mm |
| db | 122mm |
| Da max | 168mm |
| ra max | 2mm |
| rb max | 2mm |
| kr | 0.15 |
| Angle ring | HJ220EC |
| Angle Ring Weight | 0.42 kg |
| B1 | 10mm |
| B2 | 15mm |
