SKU: NU2211-CDX

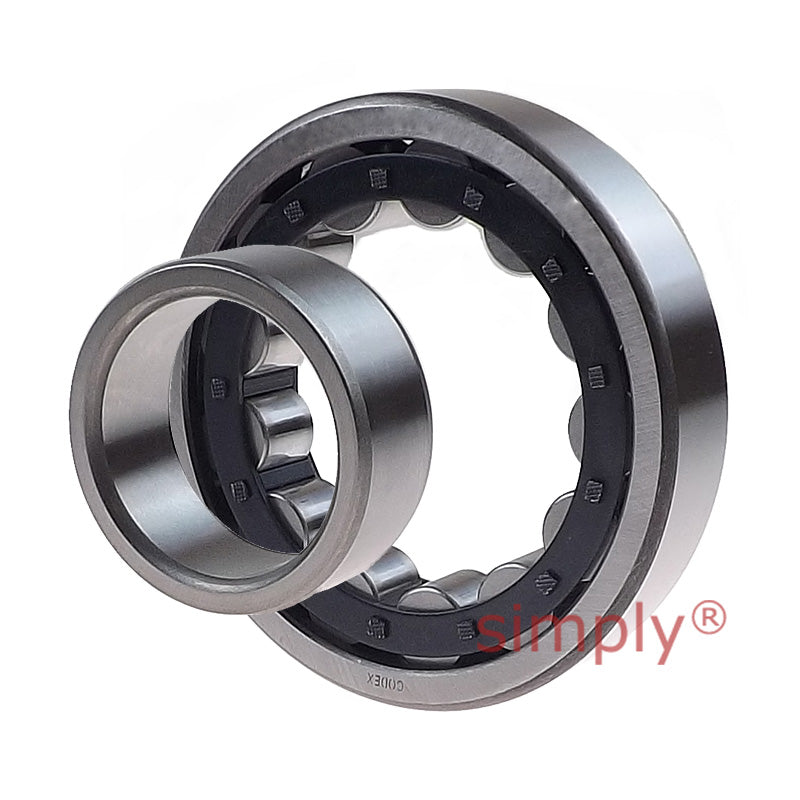

Codex NU2211 Single Row Cylindrical Roller Bearing 55x100x25mm
Codex NU2211 Single Row Cylindrical Roller Bearing 55x100x25mm
Regular price
CHF 68.00
ex VAT
Regular price
Sale price
CHF 68.00
ex VAT
In stock
Price Break
10+
CHF 54.06
19+
CHF 51.02
29+
CHF 50.42
39+
CHF 49.81
49+
CHF 49.20
74+
CHF 48.59
99+
CHF 45.56
199+
CHF 44.95
249+
CHF 44.34
499+
CHF 43.73
999+
CHF 42.52
Description
Description
|
NU Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has no flanges permitting the ease of assembly and allowing axial movement in either direction. Benefits: Axial displacement tolerant, ease of assembly and fitting |
- Brand / Quality:
- Codex - Good Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 100mm
- Width:
- 25mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 55mm |
|---|---|
| D | 100mm |
| B | 25mm |
| Dynamic load C | 114 kN |
| Static load Co | 118 kN |
| Fatigue load limit Pu | 15.3 kN |
| Reference speed | 7500 rpm |
| Limiting speed | 8000 rpm |
| Weight | 0.79 kg |
| Cage options | J.M.ML |
| d1 | 70.8mm |
| D1 | 86.3mm |
| F, E | 66mm |
| r1r2 min | 1.5mm |
| r3r4 min | 1.1mm |
| s | 1.5mm |
| da min | 62mm |
| da max | 64mm |
| db min | 68mm |
| Da max | 91mm |
| ra max | 1.5mm |
| rb max | 1mm |
| kr | 0.2 |
| Angle ring | HJ2211EC |
| Angle ring weight | 0.085kg |
| B1 | 6mm |
| B2 | 10mm |
