SKU: NU2211ECJ-SKF

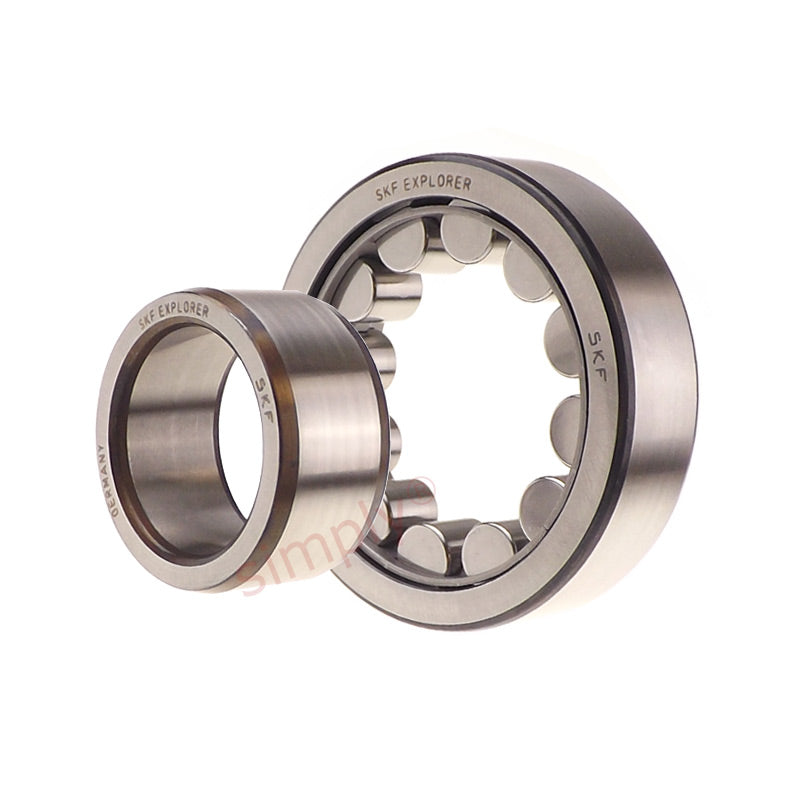

SKF NU2211ECJ Steel Cage Single Row Cylindrical Roller Bearing 55x100x25mm

Name: SKF NU2211ECJ Steel Cage Single Row Cylindrical Roller Bearing 55x100x25mm
Brand: SKF
SKU: NU2211ECJ-SKF
Price: 116.00 CHF
Availability: InStock

CHF 116.00 ex VAT

Sale Sold out

In stock

Price Break

10+ CHF 92.37

19+ CHF 87.18

29+ CHF 86.15

39+ CHF 85.11

49+ CHF 84.07

74+ CHF 83.03

99+ CHF 77.84

199+ CHF 76.80

249+ CHF 75.77

499+ CHF 74.73

999+ CHF 72.65

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF NU Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has no flanges permitting the ease of assembly and allowing axial movement in either direction.
Benefits: Axial displacement tolerant, ease of assembly and fitting

Brand / Quality:: SKF - High Quality
Inside Diameter:: 55mm
Outside Diameter:: 100mm
Width:: 25mm
Clearance:: * Standard

Technical

d	55mm
D	100mm
D1	86.3mm
B	25mm
F	66mm
Dynamic load	114 kN
Static load	118 kN
Fatigue load	15.3 kN
Reference speed	7500rpm
Limiting speed	8000rpm
r1,2min	1.1mm
r3,4min	1.5mm
s	1.5mm
Weight	0.79kg
