SKU: NU2211ECP-SKF

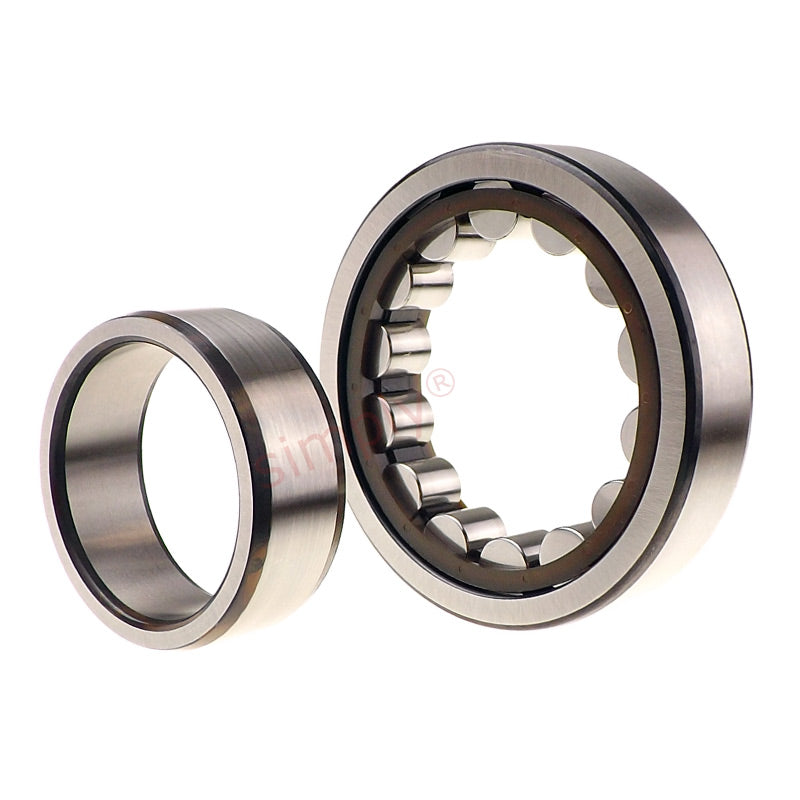

SKF NU2211ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 55x100x25mm
SKF NU2211ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 55x100x25mm
Regular price
CHF 81.00
ex VAT
Regular price
Sale price
CHF 81.00
ex VAT
In stock
Price Break
10+
CHF 64.30
19+
CHF 60.69
29+
CHF 59.97
39+
CHF 59.25
49+
CHF 58.52
74+
CHF 57.80
99+
CHF 54.19
199+
CHF 53.47
249+
CHF 52.74
499+
CHF 52.02
999+
CHF 50.58
Description
Description
|
SKF NU Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has no flanges permitting the ease of assembly and allowing axial movement in either direction. Benefits: Axial displacement tolerant, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 100mm
- Width:
- 25mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 55mm |
|---|---|
| D | 100mm |
| B | 25mm |
| Dynamic load C | 114 kN |
| Static load Co | 118 kN |
| Fatigue load limit Pu | 15.3 kN |
| Reference speed | 7500 rpm |
| Limiting speed | 8000 rpm |
| Weight | 0.79 kg |
| Alt cage | J.M.ML |
| d1 | 70.8mm |
| D1 | 86.3mm |
| F,E | 66mm |
| r1r2 min | 1.5mm |
| r3r4 min | 1.1mm |
| S | 1.5mm |
| da min | 62mm |
| da max | 64mm |
| db | 68mm |
| Da max | 91mm |
| ra max | 1.5mm |
| rb max | 1mm |
| kr | 0.2 |
| Angle ring | HJ2211EC |
| Angle Ring Weight | 0.085 kg |
| B1 | 6mm |
| B2 | 10mm |
