SKU: NU2212ECJ/C3-SKF

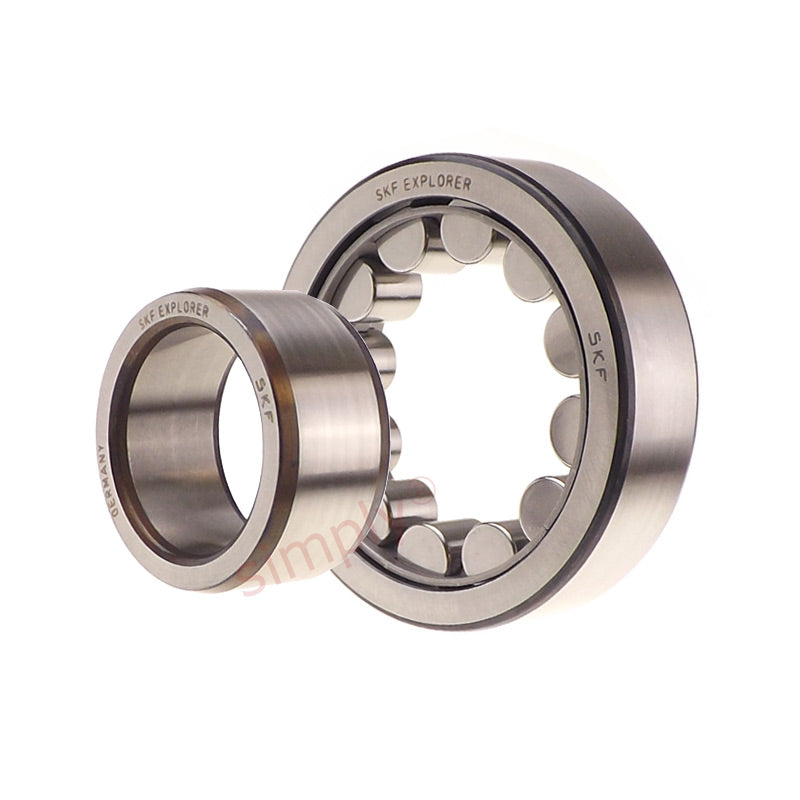

SKF NU2212ECJ/C3 Steel Cage Single Row Cylindrical Roller Bearing 60x110x28mm
SKF NU2212ECJ/C3 Steel Cage Single Row Cylindrical Roller Bearing 60x110x28mm
Regular price
CHF 122.11
ex VAT
Regular price
Sale price
CHF 122.11
ex VAT
In stock
Price Break
10+
CHF 108.68
19+
CHF 102.57
29+
CHF 101.35
39+
CHF 100.13
49+
CHF 98.91
74+
CHF 97.69
99+
CHF 91.58
199+
CHF 90.36
249+
CHF 89.14
499+
CHF 87.92
999+
CHF 85.48
Couldn't load pickup availability
Description
Description
|
SKF NU Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has no flanges permitting the ease of assembly and allowing axial movement in either direction. Benefits: Axial displacement tolerant, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 110mm
- Width:
- 28mm
- Clearance:
- C3
Technical
Technical
| d | 60mm |
|---|---|
| D | 110mm |
| D1 | 95.7mm |
| B | 28mm |
| F | 72mm |
| Dynamic load | 146 kN |
| Static load | 153 kN |
| Fatigue load | 20 kN |
| Reference speed | 6700rpm |
| Limiting speed | 7500rpm |
| r1,2min | 1.5mm |
| r3,4min | 1.5mm |
| s | 1.4mm |
| Weight | 1.1kg |
