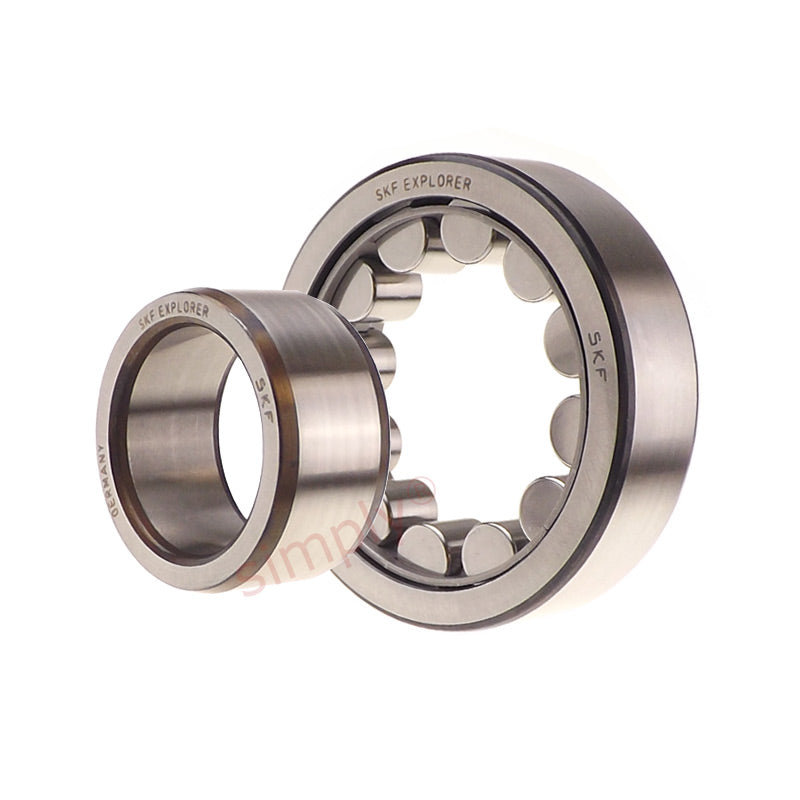

SKF NU2212ECJ Steel Cage Single Row Cylindrical Roller Bearing 60x110x28mm

Name: SKF NU2212ECJ Steel Cage Single Row Cylindrical Roller Bearing 60x110x28mm
Brand: SKF
SKU: NU2212ECJ-SKF
Price: 122.00 CHF
Availability: InStock

CHF 122.00 ex VAT

Sale Sold out

In stock

Price Break

10+ CHF 96.44

19+ CHF 91.02

29+ CHF 89.93

39+ CHF 88.85

49+ CHF 87.77

74+ CHF 86.68

99+ CHF 81.27

199+ CHF 80.18

249+ CHF 79.10

499+ CHF 78.02

999+ CHF 75.85

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF NU Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has no flanges permitting the ease of assembly and allowing axial movement in either direction.
Benefits: Axial displacement tolerant, ease of assembly and fitting

Brand / Quality:: SKF - High Quality
Inside Diameter:: 60mm
Outside Diameter:: 110mm
Width:: 28mm
Clearance:: * Standard

Technical

d	60mm
D	110mm
D1	95.7mm
B	28mm
F	72mm
Dynamic load	146 kN
Static load	153 kN
Fatigue load	20 kN
Reference speed	6700rpm
Limiting speed	7500rpm
r1,2min	1.5mm
r3,4min	1.5mm
s	1.4mm
Weight	1.1kg
