SKU: NU2224ECP/C3-SKF

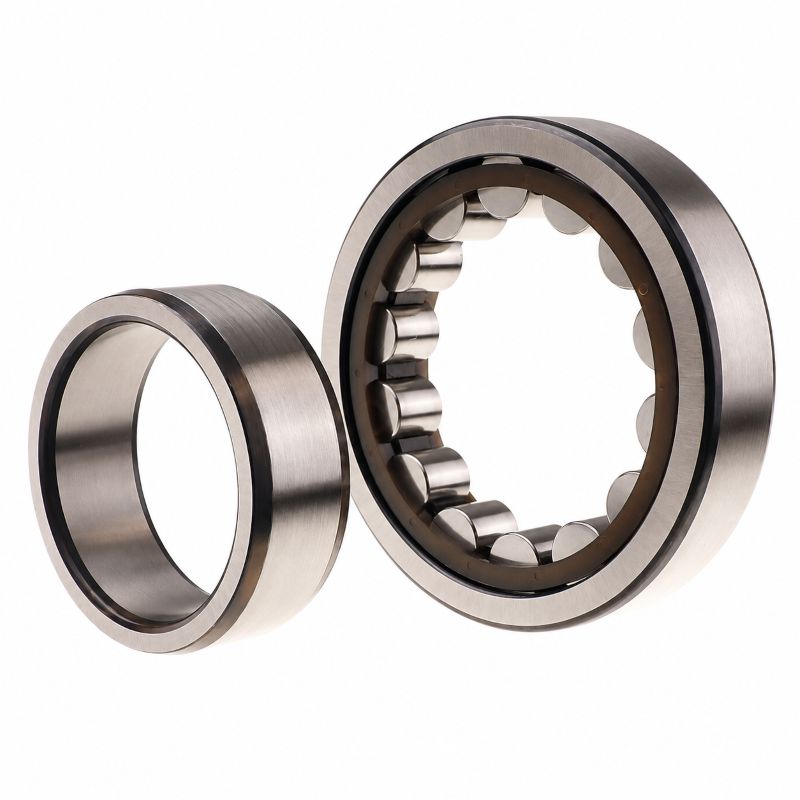

SKF NU2224ECPC3 Single Row Cylindrical Roller Bearing with Polyamide Cage 120x215x58mm
SKF NU2224ECPC3 Single Row Cylindrical Roller Bearing with Polyamide Cage 120x215x58mm
Regular price
CHF 546.35
ex VAT
Regular price
Sale price
CHF 546.35
ex VAT
In stock
Price Break
10+
CHF 486.25
19+
CHF 458.93
29+
CHF 453.47
39+
CHF 448.01
49+
CHF 442.54
74+
CHF 437.08
99+
CHF 409.76
199+
CHF 404.30
249+
CHF 398.84
499+
CHF 393.37
999+
CHF 382.45
Couldn't load pickup availability
Description
Description
|
SKF NU Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has no flanges permitting the ease of assembly and allowing axial movement in either direction. Benefits: Axial displacement tolerant, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 120mm
- Outside Diameter:
- 215mm
- Width:
- 58mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 120mm |
|---|---|
| D | 215mm |
| B | 58mm |
| Dynamic load C | 520 kN |
| Static load Co | 630 kN |
| Fatigue load limit Pu | 72 kN |
| Reference speed | 3400 rpm |
| Limiting speed | 3600 rpm |
| Weight | 8.3 kg |
| Alt cage | J.M.ML |
| d1 | 153mm |
| D1 | 188mm |
| F,E | 143.5mm |
| r1r2 min | 2.1mm |
| r3r4 min | 2.1mm |
| S | 3.8mm |
| da min | 132mm |
| da max | 140mm |
| db | 146mm |
| Da max | 203mm |
| ra max | 2mm |
| rb max | 2mm |
| kr | 0.2 |
| Angle ring | HJ2224EC |
| Angle ring weight | 0.74 kg |
| B1 | 11mm |
| B2 | 20mm |
