SKU: NU2307-CDX

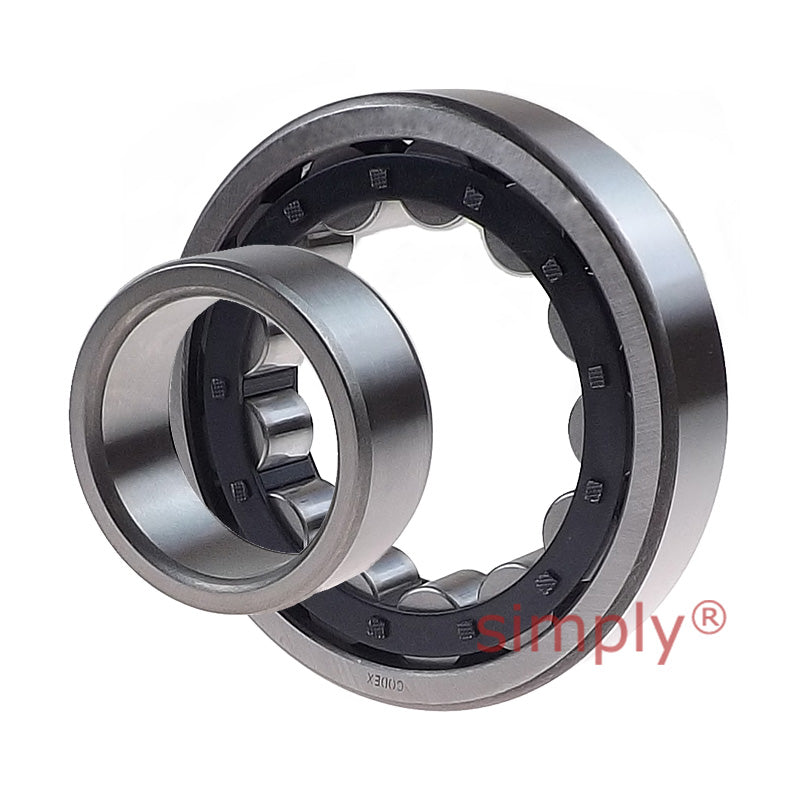

Codex NU2307 Single Row Cylindrical Roller Bearing 35x80x31mm
Codex NU2307 Single Row Cylindrical Roller Bearing 35x80x31mm
Regular price
CHF 57.52
ex VAT
Regular price
Sale price
CHF 57.52
ex VAT
In stock
Price Break
10+
CHF 51.19
19+
CHF 48.32
29+
CHF 47.74
39+
CHF 47.17
49+
CHF 46.59
74+
CHF 46.02
99+
CHF 43.14
199+
CHF 42.56
249+
CHF 41.99
499+
CHF 41.41
999+
CHF 40.26
Couldn't load pickup availability
Description
Description
|
NU Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has no flanges permitting the ease of assembly and allowing axial movement in either direction. Benefits: Axial displacement tolerant, ease of assembly and fitting |
- Brand / Quality:
- Codex - Good Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 80mm
- Width:
- 31mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 35mm |
|---|---|
| D | 80mm |
| B | 31mm |
| Dynamic load C | 106 kN |
| Static load Co | 98 kN |
| Fatigue load limit Pu | 12.7 kN |
| Reference speed | 9500 rpm |
| Limiting speed | 11000 rpm |
| Weight | 0.72 kg |
| Cage options | J |
| D1 | 66.3mm |
| F, E | 46.2mm |
| r1r2 min | 1.5mm |
| r3r4 min | 1.1mm |
| s | 2.7mm |
| da min | 42mm |
| da max | 44mm |
| db min | 48mm |
| Da max | 71mm |
| ra max | 1.5mm |
| rb max | 1mm |
| kr | 0.25 |
