SKU: NU2308-CDX

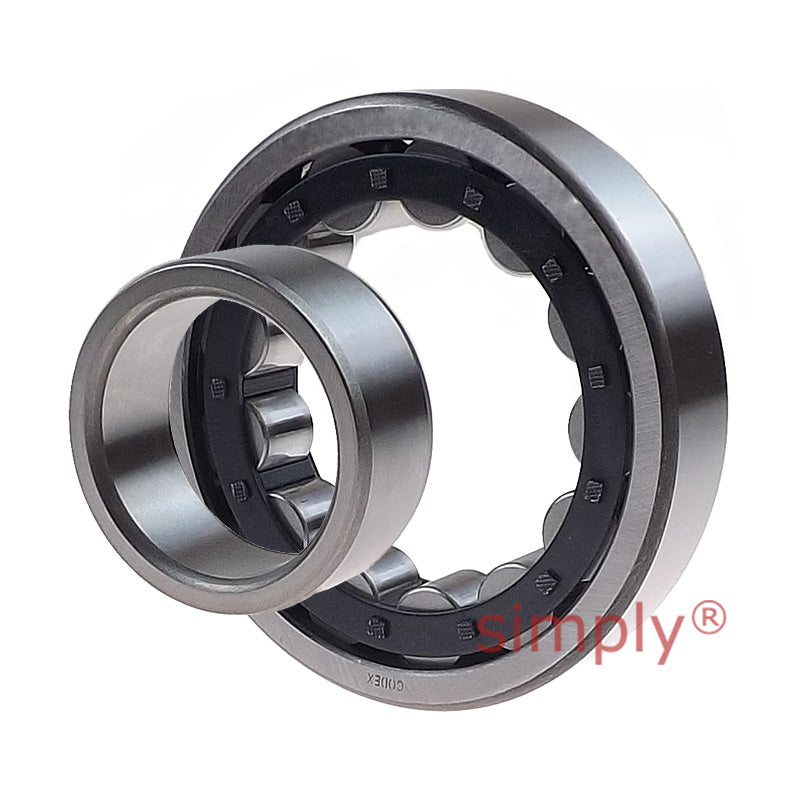

Codex NU2308 Single Row Cylindrical Roller Bearing 40x90x33mm
Codex NU2308 Single Row Cylindrical Roller Bearing 40x90x33mm
Regular price
CHF 69.00
ex VAT
Regular price
Sale price
CHF 69.00
ex VAT
In stock
Price Break
10+
CHF 54.89
19+
CHF 51.81
29+
CHF 51.19
39+
CHF 50.58
49+
CHF 49.96
74+
CHF 49.34
99+
CHF 46.26
199+
CHF 45.64
249+
CHF 45.03
499+
CHF 44.41
999+
CHF 43.18
Description
Description
|
NU Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has no flanges permitting the ease of assembly and allowing axial movement in either direction. Benefits: Axial displacement tolerant, ease of assembly and fitting |
- Brand / Quality:
- Codex - Good Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 90mm
- Width:
- 33mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 40mm |
|---|---|
| D | 90mm |
| B | 33mm |
| Dynamic load C | 129 kN |
| Static load Co | 120 kN |
| Fatigue load limit Pu | 15.3 kN |
| Reference speed | 8000 rpm |
| Limiting speed | 9500 rpm |
| Weight | 0.94 kg |
| Cage options | J.M.ML |
| D1 | 75.6mm |
| F, E | 52mm |
| r1r2 min | 1.5mm |
| r3r4 min | 1.5mm |
| s | 2.9mm |
| da min | 49mm |
| da max | 50mm |
| db min | 54mm |
| Da max | 81mm |
| ra max | 1.5mm |
| rb max | 1.5mm |
| kr | 0.25 |
