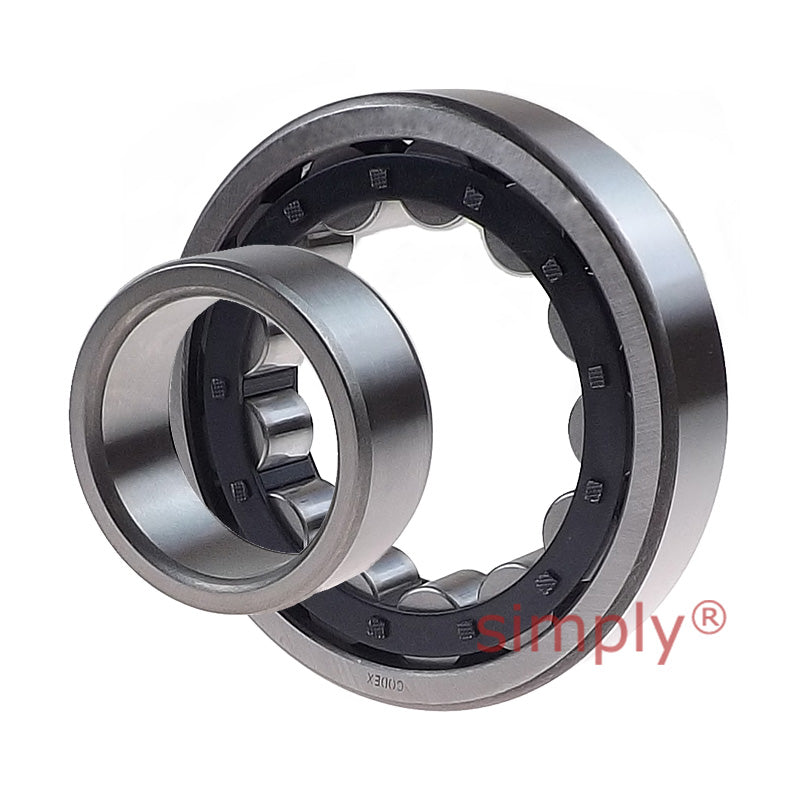

Codex NU2312 Single Row Cylindrical Roller Bearing 60x130x46mm
Codex NU2312 Single Row Cylindrical Roller Bearing 60x130x46mm
Regular price
CHF 152.38
ex VAT
Regular price
Sale price
CHF 152.38
ex VAT
In stock
Price Break
10+
CHF 135.62
19+
CHF 128.00
29+
CHF 126.48
39+
CHF 124.95
49+
CHF 123.43
74+
CHF 121.90
99+
CHF 114.29
199+
CHF 112.76
249+
CHF 111.24
499+
CHF 109.71
999+
CHF 106.67
Couldn't load pickup availability
Description
Description
|
NU Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has no flanges permitting the ease of assembly and allowing axial movement in either direction. Benefits: Axial displacement tolerant, ease of assembly and fitting |
- Brand / Quality:
- Codex - Good Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 130mm
- Width:
- 46mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 60mm |
|---|---|
| D | 130mm |
| B | 46mm |
| Dynamic load C | 260 kN |
| Static load Co | 265 kN |
| Fatigue load limit Pu | 34.5 kN |
| Reference speed | 5600 rpm |
| Limiting speed | 6700 rpm |
| Weight | 2.75 kg |
| Cage options | ML |
| d1 | 84.3mm |
| D1 | 110mm |
| F, E | 77mm |
| r1r2 min | 2.1mm |
| r3r4 min | 2.1mm |
| s | 3.6mm |
| da min | 72mm |
| da max | 74mm |
| db min | 79mm |
| Da max | 118mm |
| ra max | 2mm |
| rb max | 2mm |
| kr | 0.25 |
| Angle ring | HJ2312EC |
| Angle ring weight | 0.24kg |
| B1 | 9mm |
| B2 | 16mm |
