SKU: NU2314ECP/C3-SKF

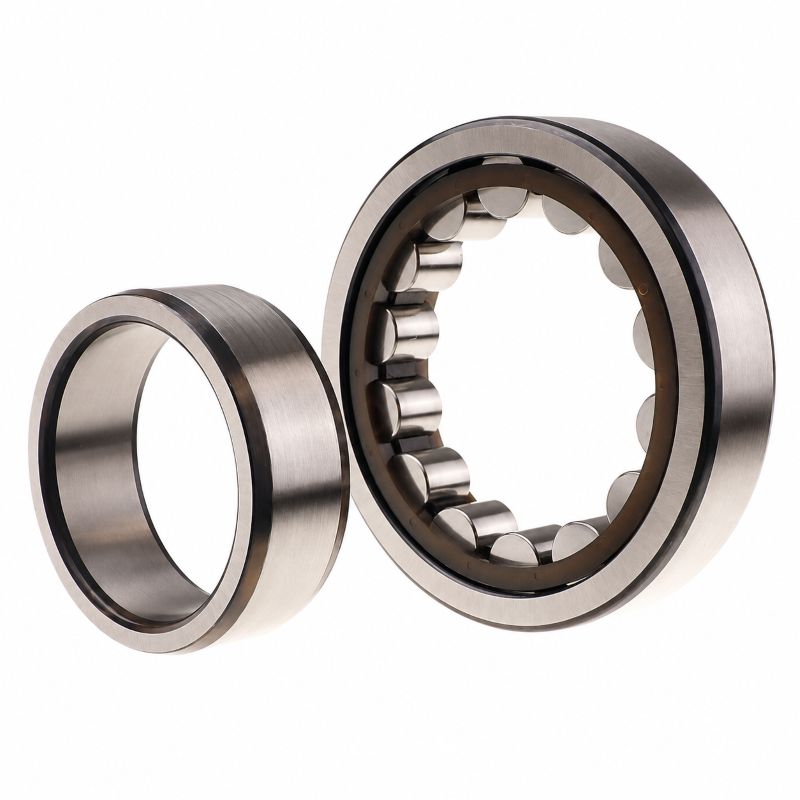

SKF NU2314ECPC3 Single Row Cylindrical Roller Bearing with Polyamide Cage 70x150x51mm
SKF NU2314ECPC3 Single Row Cylindrical Roller Bearing with Polyamide Cage 70x150x51mm
Regular price
CHF 250.00
ex VAT
Regular price
Sale price
CHF 250.00
ex VAT
In stock
Price Break
10+
CHF 198.88
19+
CHF 187.71
29+
CHF 185.47
39+
CHF 183.24
49+
CHF 181.00
74+
CHF 178.77
99+
CHF 167.59
199+
CHF 165.36
249+
CHF 163.12
499+
CHF 160.89
999+
CHF 156.42
Description
Description
|
SKF NU Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has no flanges permitting the ease of assembly and allowing axial movement in either direction. Benefits: Axial displacement tolerant, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 70mm
- Outside Diameter:
- 150mm
- Width:
- 51mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 70mm |
|---|---|
| D | 150mm |
| B | 51mm |
| Dynamic load C | 315 kN |
| Static load Co | 325 kN |
| Fatigue load limit Pu | 41.5 kN |
| Reference speed | 4800 rpm |
| Limiting speed | 5600 rpm |
| Weight | 3.9 kg |
| Alt cage | ML |
| d1 | 97.3mm |
| D1 | 127mm |
| F,E | 89mm |
| r1r2 min | 2.1mm |
| r3r4 min | 2.1mm |
| S | 4.8mm |
| da min | 82mm |
| da max | 86mm |
| db | 91mm |
| Da max | 138mm |
| ra max | 2mm |
| rb max | 2mm |
| kr | 0.25 |
| Angle ring | HJ2314EC |
| Angle ring weight | 0.34 kg |
| B1 | 10mm |
| B2 | 18.5mm |
